Family 2345

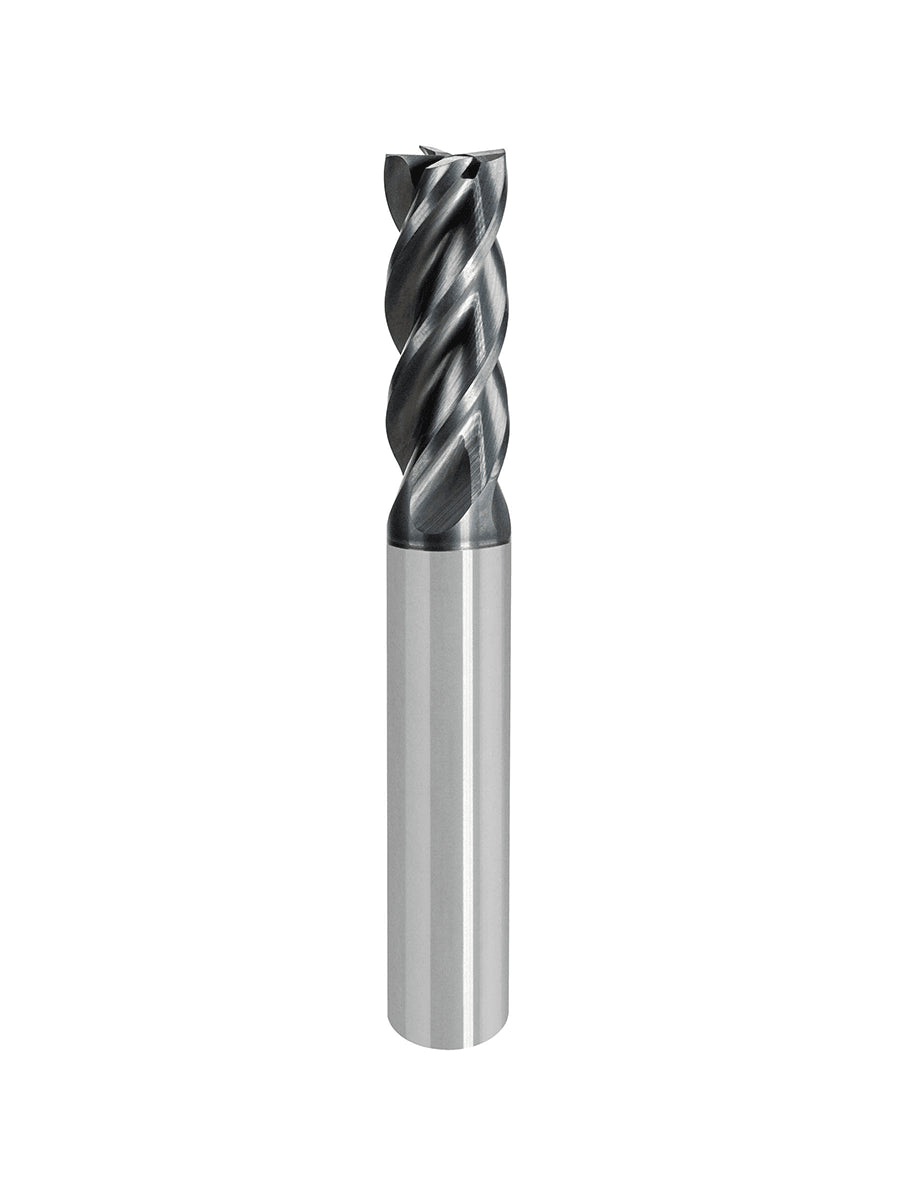

**Multi-material **and multi-application technical solid carbide cutter
Variables helixes and staggered teeth
Coated : AlCrN-C
Right-handed helix : 37° and 40°
4 teeth, 2 of which are "overlapping"
Features
Machined materials
Technical drawing
| Réf. | D1 | D2 | L2 | L1 | Z | - |
|---|---|---|---|---|---|---|
| 2345--0300 | 3.0 | 6.0* | 8.0 | 50.0 | 4 | Log in or Sign In to order |
| 2345--0400 | 4.0 | 6.0* | 10.0 | 50.0 | 4 | Log in or Sign In to order |
| 2345--0500 | 5.0 | 6.0* | 11.0 | 50.0 | 4 | Log in or Sign In to order |
| 2345--0600 | 6.0 | 6.0 | 21.0 | 64.0 | 4 | Log in or Sign In to order |
| 2345--0800 | 8.0 | 8.0 | 23.0 | 67.0 | 4 | Log in or Sign In to order |
| 2345--1000 | 10.0 | 10.0 | 25.0 | 73.0 | 4 | Log in or Sign In to order |
| 2345--1200 | 12.0 | 12.0 | 30.0 | 84.0 | 4 | Log in or Sign In to order |
| 2345--1400 | 14.0 | 14.0 | 35.0 | 90.0 | 4 | Log in or Sign In to order |
| 2345--1600 | 16.0 | 16.0 | 40.0 | 99.0 | 4 | Log in or Sign In to order |
* Reinforced tail
