2409 - Foret à plaquette carbure brasée série courte angle de pointe 118° - Ø10 à Ø20

Family 2409

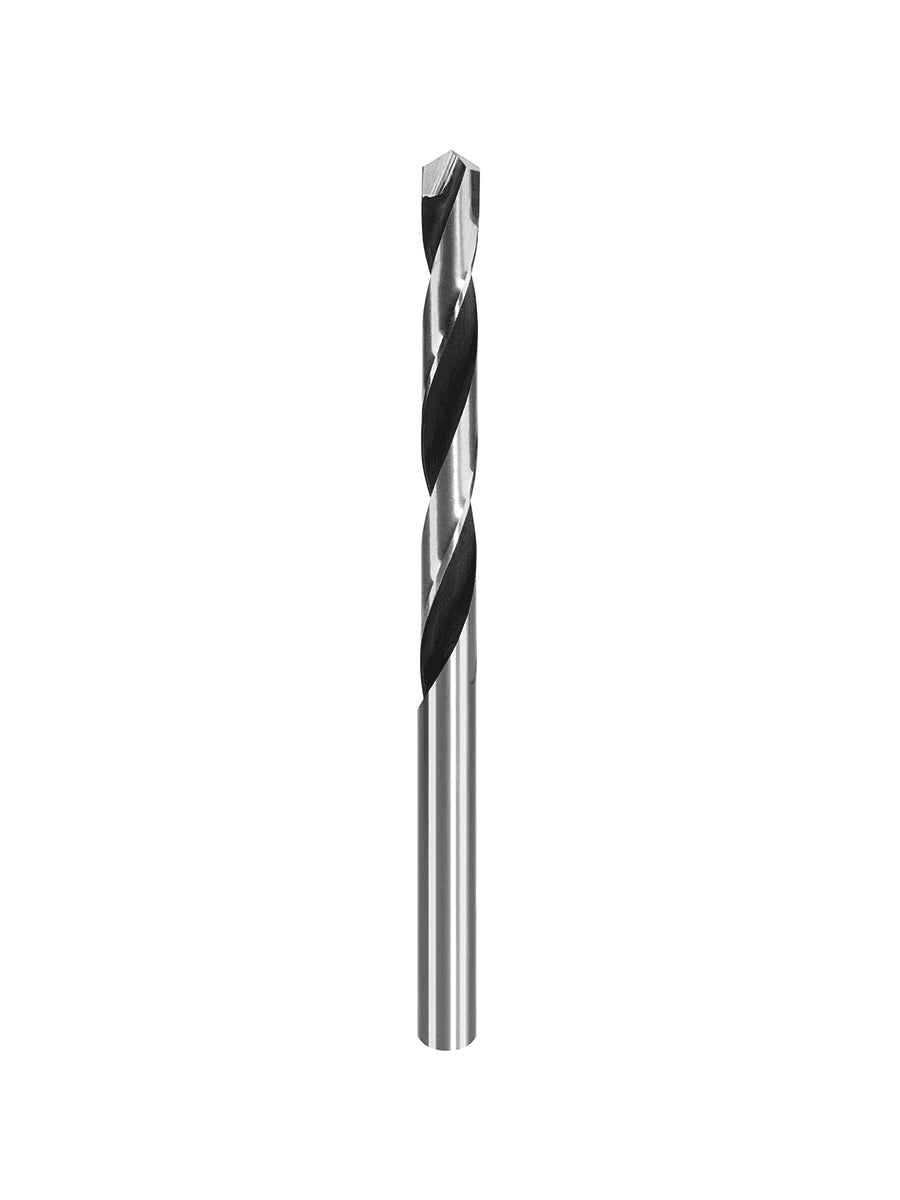

Brazed carbide insert drill bit 6° cut 118° tip angle short series
Right cutting : 6°
Sharpening : AF1
Body : High-speed steel - Carbide insert K20

Dry cutting

Features

Dry cutting
Drilling

Machined materials

Non ferrous metals
Steels
Fonts
Graphite

Possible materials

Non ferrous metals
Stainless steels
Titanium
Refractory steels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
2409--1000 10.0 10.0 87.0 133.0 2
2409--1020 10.2 10.2 87.0 133.0 2
2409--1050 10.5 10.5 87.0 133.0 2
2409--1100 11.0 11.0 94.0 142.0 2
2409--1120 11.2 11.2 94.0 142.0 2
2409--1150 11.5 11.5 94.0 142.0 2
2409--1200 12.0 12.0 101.0 151.0 2
2409--1220 12.2 12.2 101.0 151.0 2
2409--1250 12.5 12.5 101.0 151.0 2
2409--1300 13.0 13.0 101.0 151.0 2
2409--1350 13.5 13.5 108.0 160.0 2
2409--1400 14.0 14.0 108.0 160.0 2
2409--1450 14.5 14.5 114.0 169.0 2
2409--1500 15.0 15.0 114.0 169.0 2
2409--1550 15.5 15.5 120.0 178.0 2
2409--1600 16.0 16.0 120.0 178.0 2
2409--1650 16.5 16.5 125.0 184.0 2
2409--1700 17.0 17.0 125.0 184.0 2
2409--1750 17.5 17.5 130.0 191.0 2
2409--1800 18.0 18.0 130.0 191.0 2
2409--1850 18.5 18.5 135.0 198.0 2
2409--1900 19.0 19.0 135.0 198.0 2
2409--1950 19.5 19.5 140.0 205.0 2
2409--2000 20.0 20.0 140.0 205.0 2
