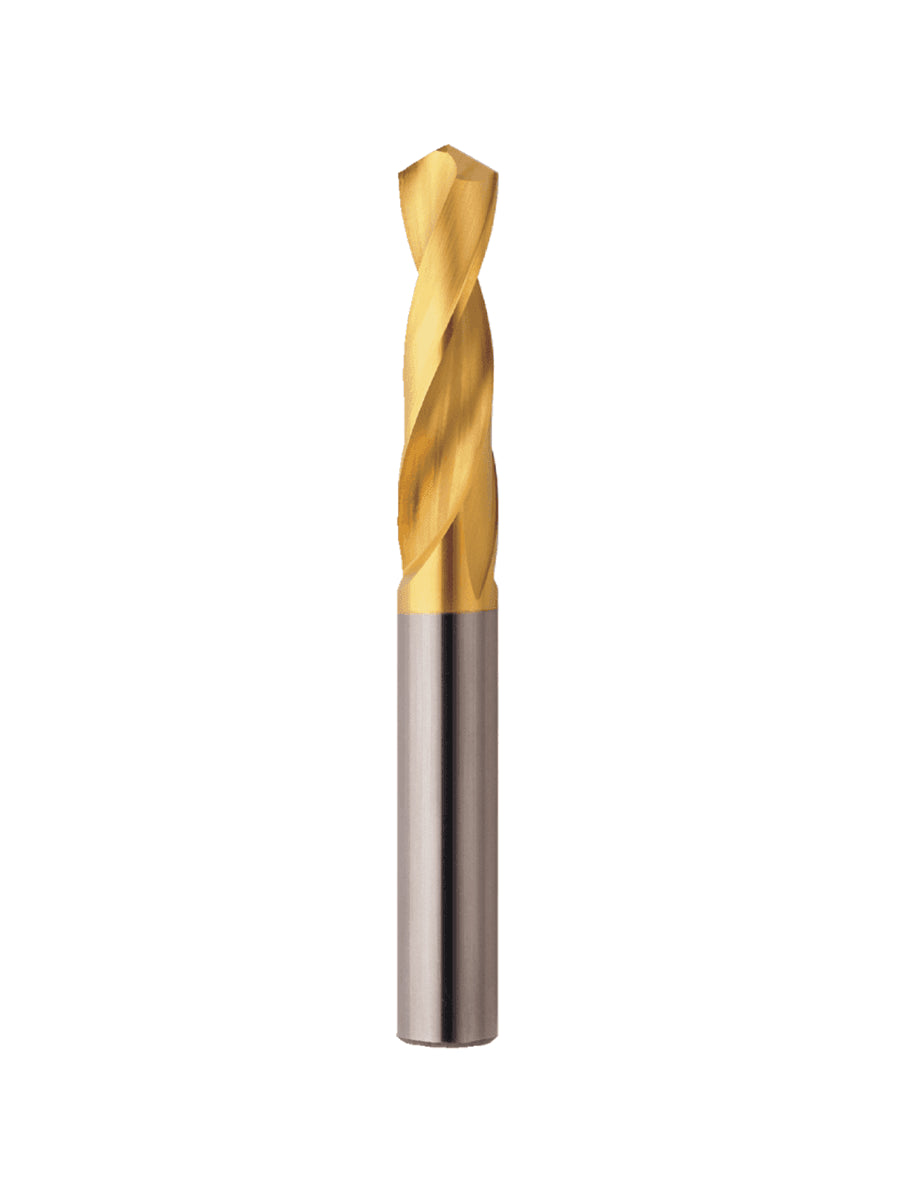

2415Tin - Foret 2 lèvres carbure monobloc revêtue TIN - Ø0,4 à Ø7,9

Family 2415Tin

Right hand cut
Right-handed helix 25°
Number of lips 2
Sharpening AF1
Carbide MK15
Cylindrical attachment

Use coolant

Features

Use coolant
Drilling

Machined materials

Steels
Stainless steels
Fonts

Possible materials

Fonts

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 -
2415-T0040 0.4 0.4 5.0 30.0
2415-T0800 8.0 8.0 37.0 79.0
2415-T0050 0.5 0.5 5.5 30.0
2415-T0810 8.1 8.1 37.0 79.0
2415-T0060 0.6 0.6 5.5 30.0
2415-T0820 8.2 8.2 37.0 79.0
2415-T0070 0.7 0.7 6.5 30.0
2415-T0825 8.25 8.25 37.0 79.0
2415-T0075 0.75 0.75 6.5 30.0
2415-T0830 8.3 8.3 37.0 79.0
2415-T0080 0.8 0.8 8.0 30.0
2415-T0840 8.4 8.4 37.0 79.0
2415-T0090 0.9 0.9 8.0 30.0
2415-T0095 0.95 0.95 8.0 30.0
2415-T0100 1.0 1.0 8.0 30.0
2415-T0110 1.1 1.1 8.0 30.0
2415-T0120 1.2 1.2 8.0 30.0
2415-T0125 1.25 1.25 8.0 30.0
2415-T0130 1.3 1.3 8.0 30.0
2415-T0140 1.4 1.4 9.0 32.0
2415-T0145 1.45 1.45 9.0 32.0
2415-T0150 1.5 1.5 9.0 32.0
2415-T0160 1.6 1.6 10.0 34.0
2415-T0170 1.7 1.7 10.0 34.0
2415-T0175 1.75 1.75 11.0 36.0
2415-T0180 1.8 1.8 11.0 36.0
2415-T0190 1.9 1.9 11.0 36.0
2415-T0200 2.0 2.0 12.0 38.0
2415-T0205 2.05 2.05 12.0 38.0
2415-T0210 2.1 2.1 12.0 38.0
2415-T0220 2.2 2.2 13.0 40.0
2415-T0225 2.25 2.25 13.0 40.0
2415-T0230 2.3 2.3 13.0 40.0
2415-T0240 2.4 2.4 14.0 43.0
2415-T0250 2.5 2.5 14.0 43.0
2415-T0260 2.6 2.6 14.0 43.0
2415-T0270 2.7 2.7 16.0 46.0
2415-T0275 2.75 2.75 16.0 46.0
2415-T0280 2.8 2.8 16.0 46.0
2415-T0290 2.9 2.9 16.0 46.0
2415-T0300 3.0 3.0 16.0 46.0
2415-T0310 3.1 3.1 18.0 49.0
2415-T0320 3.2 3.2 18.0 49.0
2415-T0325 3.25 3.25 18.0 49.0
2415-T0330 3.3 3.3 18.0 49.0
2415-T0340 3.4 3.4 20.0 52.0
2415-T0350 3.5 3.5 20.0 52.0
2415-T0360 3.6 3.6 20.0 52.0
2415-T0370 3.7 3.7 20.0 52.0
2415-T0375 3.75 3.75 22.0 55.0
2415-T0380 3.8 3.8 22.0 55.0
2415-T0390 3.9 3.9 22.0 55.0
2415-T0400 4.0 4.0 22.0 55.0
2415-T0410 4.1 4.1 22.0 55.0
2415-T0420 4.2 4.2 22.0 55.0
2415-T0425 4.25 4.25 24.0 58.0
2415-T0430 4.3 4.3 24.0 58.0
2415-T0440 4.4 4.4 24.0 58.0
2415-T0450 4.5 4.5 24.0 58.0
2415-T0460 4.6 4.6 24.0 58.0
2415-T0470 4.7 4.7 24.0 58.0
2415-T0475 4.75 4.75 26.0 62.0
2415-T0480 4.8 4.8 26.0 62.0
2415-T0490 4.9 4.9 26.0 62.0
2415-T0500 5.0 5.0 26.0 62.0
2415-T0510 5.1 5.1 26.0 62.0
2415-T0520 5.2 5.2 26.0 62.0
2415-T0525 5.25 5.25 26.0 62.0
2415-T0530 5.3 5.3 26.0 62.0
2415-T0540 5.4 5.4 28.0 66.0
2415-T0550 5.5 5.5 28.0 66.0
2415-T0560 5.6 5.6 28.0 66.0
2415-T0570 5.7 5.7 28.0 66.0
2415-T0575 5.75 5.75 28.0 66.0
2415-T0580 5.8 5.8 28.0 66.0
2415-T0590 5.9 5.9 28.0 66.0
2415-T0600 6.0 6.0 28.0 66.0
2415-T0610 6.1 6.1 31.0 70.0
2415-T0620 6.2 6.2 31.0 70.0
2415-T0625 6.25 6.25 31.0 70.0
2415-T0630 6.3 6.3 31.0 70.0
2415-T0640 6.4 6.4 31.0 70.0
2415-T0650 6.5 6.5 31.0 70.0
2415-T0660 6.6 6.6 31.0 70.0
2415-T0670 6.7 6.7 31.0 70.0
2415-T0675 6.75 6.75 34.0 74.0
2415-T0680 6.8 6.8 34.0 74.0
2415-T0690 6.9 6.9 34.0 74.0
2415-T0700 7.0 7.0 34.0 74.0
2415-T0710 7.1 7.1 34.0 74.0
2415-T0720 7.2 7.2 34.0 74.0
2415-T0725 7.25 7.25 34.0 74.0
2415-T0730 7.3 7.3 34.0 74.0
2415-T0740 7.4 7.4 34.0 74.0
2415-T0750 7.5 7.5 34.0 74.0
2415-T0760 7.6 7.6 37.0 79.0
2415-T0770 7.7 7.7 37.0 79.0
2415-T0775 7.75 7.75 37.0 79.0
2415-T0780 7.8 7.8 37.0 79.0
2415-T0790 7.9 7.9 37.0 79.0
