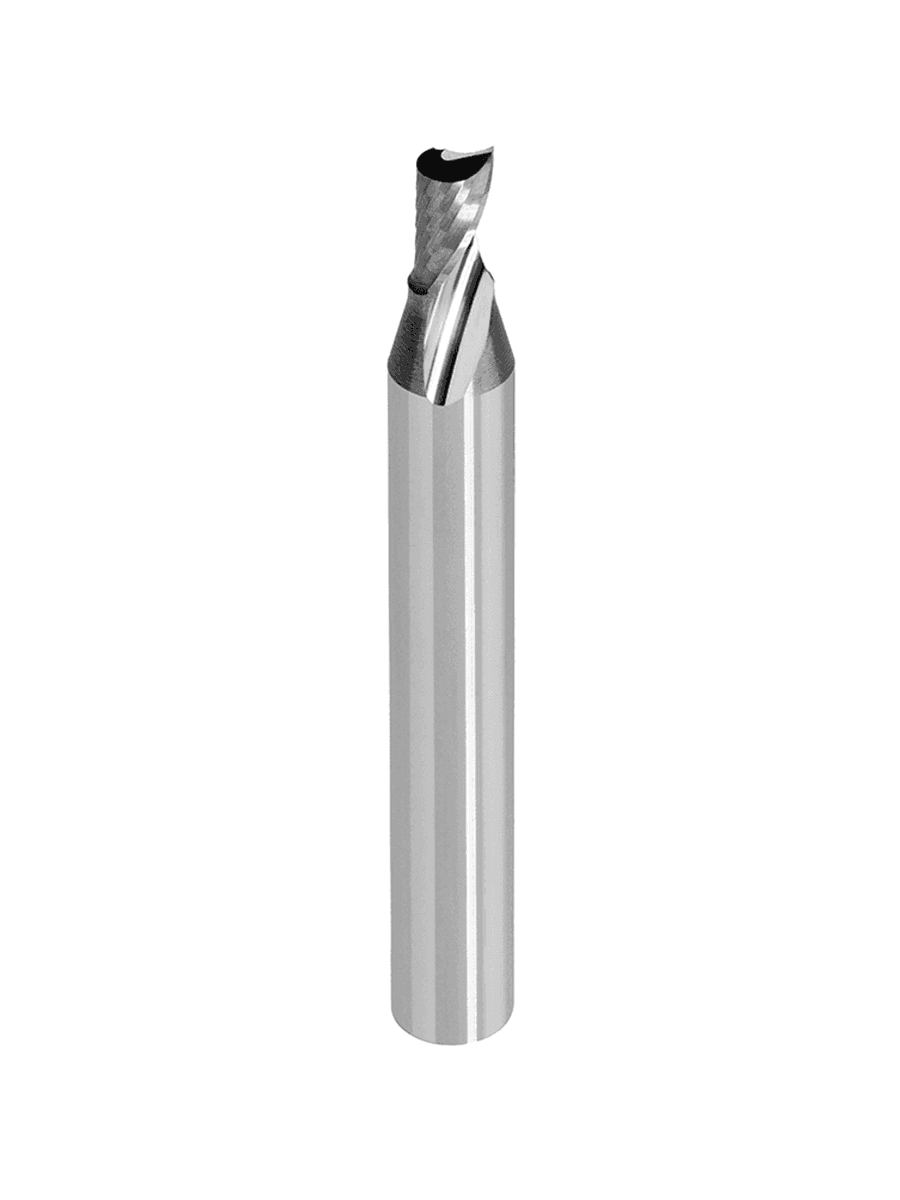

4001 - Fraise une dent courte pour l'aluminium

Family 4001

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Particularly recommended for Dibond© type TAC and ACM.

Smooth and polished flute, limited built-up edge effects.

Upcut tool, upwards removal of chips. Stub cutter series, high rigidity

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.
    Uncoated cutter, lubrication recommended

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part number without ring: 4001--0300A
Part no. with ring: 4001--0300A-B
Lead time: 48 hours

Use coolant

Features

Use coolant
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4001--0300 3.0 3.0 4.5 40.0 1
4001--0300A 3.0 6.0* 4.5 50.0 1
4001--0300A-B 3.0 6.0* 4.5 50.0 1
4001--0400 4.0 4.0 6.0 50.0 1
4001--0400A 4.0 6.0* 6.0 50.0 1
4001--0400A-B 4.0 6.0* 6.0 50.0 1
4001--0500 5.0 5.0 7.5 50.0 1
4001--0500A 5.0 6.0* 7.5 50.0 1
4001--0500A-B 5.0 6.0* 7.5 50.0 1
4001--0600 6.0 6.0 9.0 50.0 1
4001--0600-B 6.0 6.0 9.0 50.0 1
4001--0800 8.0 8.0 12.0 60.0 1
4001--1000 10.0 10.0 15.0 65.0 1
4001--1200 12.0 12.0 18.0 65.0 1
* Reinforced tail
