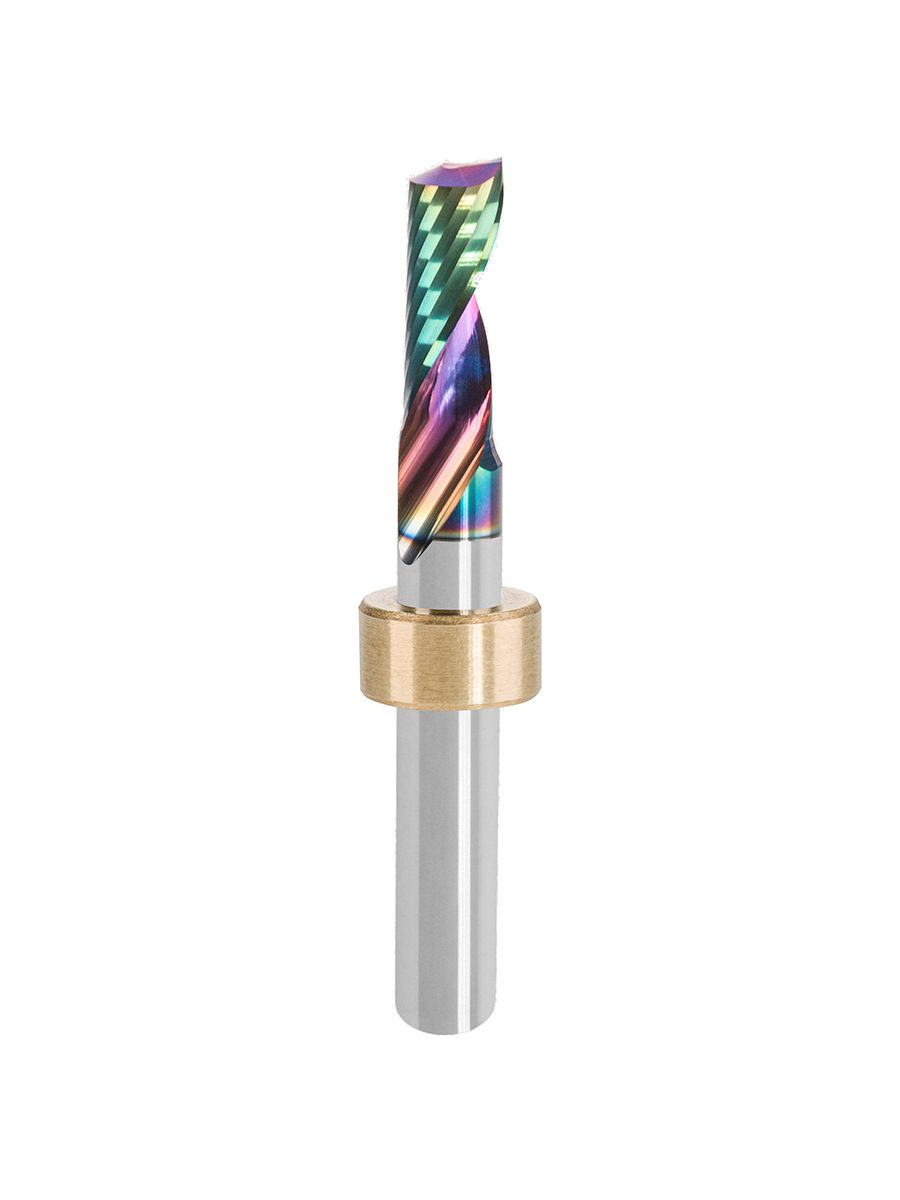

Family 4001NHC TYPE ZUND
RINGED CUTTER FOR ZÜND WITH Ø6 SHANK.
Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)
Particularly recommended for Dibond© type ACM and TAC
Smooth and polished flute, limited built-up edge effects
Upcut tool, upwards removal of chips.
Stub cutter series, high rigidity
- Improves surface finishes,
- Longer service life of the tool,
- Improves cutting conditions.
THE NHC COATING OFFERS GREATER RESISTANCE TO ABRASION.
Lead time: 48 hours
Solid carbideUpcut toolCoated tool
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | L2 | L1 | Z | - |
|---|---|---|---|---|---|---|
| 4001-NHC0200-B | 2.0 | 6.0* | 3.0 | 50.0 | 1 | Log in or Sign In to order |
| 4001-NHC0300A-B | 3.0 | 6.0* | 4.5 | 50.0 | 1 | Log in or Sign In to order |
| 4001-NHC0400A-B | 4.0 | 6.0* | 6.0 | 50.0 | 1 | Log in or Sign In to order |
| 4001-NHC0500A-B | 5.0 | 6.0* | 7.5 | 50.0 | 1 | Log in or Sign In to order |
| 4001-NHC0600-B | 6.0 | 6.0 | 9.0 | 50.0 | 1 | Log in or Sign In to order |
* Reinforced tail
