4001X - Fraise une dent courte revêtue hélice à droite pour l'aluminium

Family 4001X

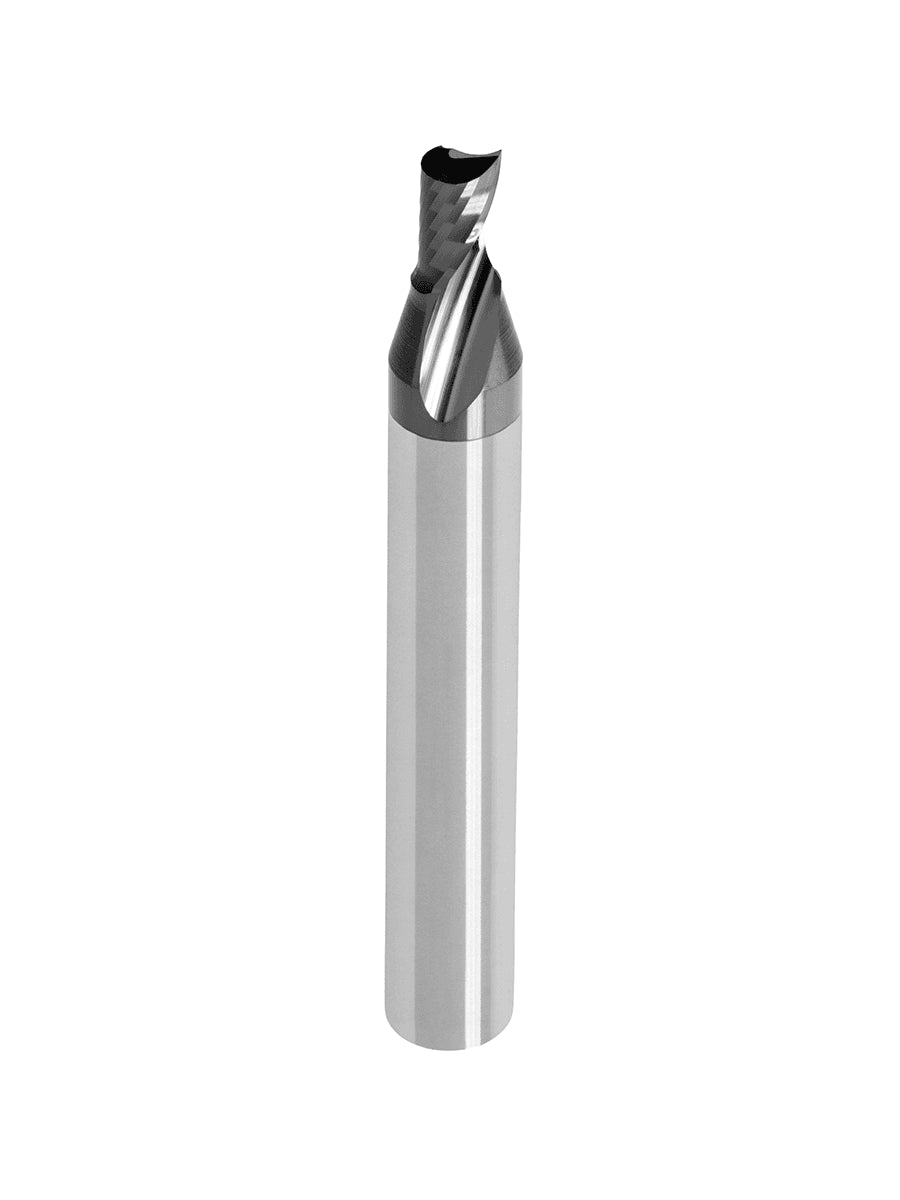

4001X - Coated, single-tooth stub cutters with right-hand helix for aluminium

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Particularly recommended for Dibond© type ACM and TAC

Smooth and polished flute, limited built-up edge effects

Upcut tool, upwards removal of chips.

Stub cutter series, high rigidity

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part number without ring: 4001-X0300A
Part no. with ring: 4001-X0300A-B
Lead time: 48 hours

From 23,70 €
Dry cutting

Features

Dry cutting
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4001-X0200 2.0 6.0* 3.0 50.0 1
4001-X0300 3.0 3.0 4.5 40.0 1
4001-X0300A 3.0 6.0* 4.5 50.0 1
4001-X0400 4.0 4.0 6.0 50.0 1
4001-X0400A 4.0 6.0* 6.0 50.0 1
4001-X0500 5.0 5.0 7.5 50.0 1
4001-X0500A 5.0 6.0* 7.5 50.0 1
4001-X0600 6.0 6.0 9.0 50.0 1
4001-X0800 8.0 8.0 12.0 60.0 1
4001-X1000 10.0 10.0 15.0 65.0 1
4001-X1200 12.0 12.0 18.0 65.0 1
* Reinforced tail
