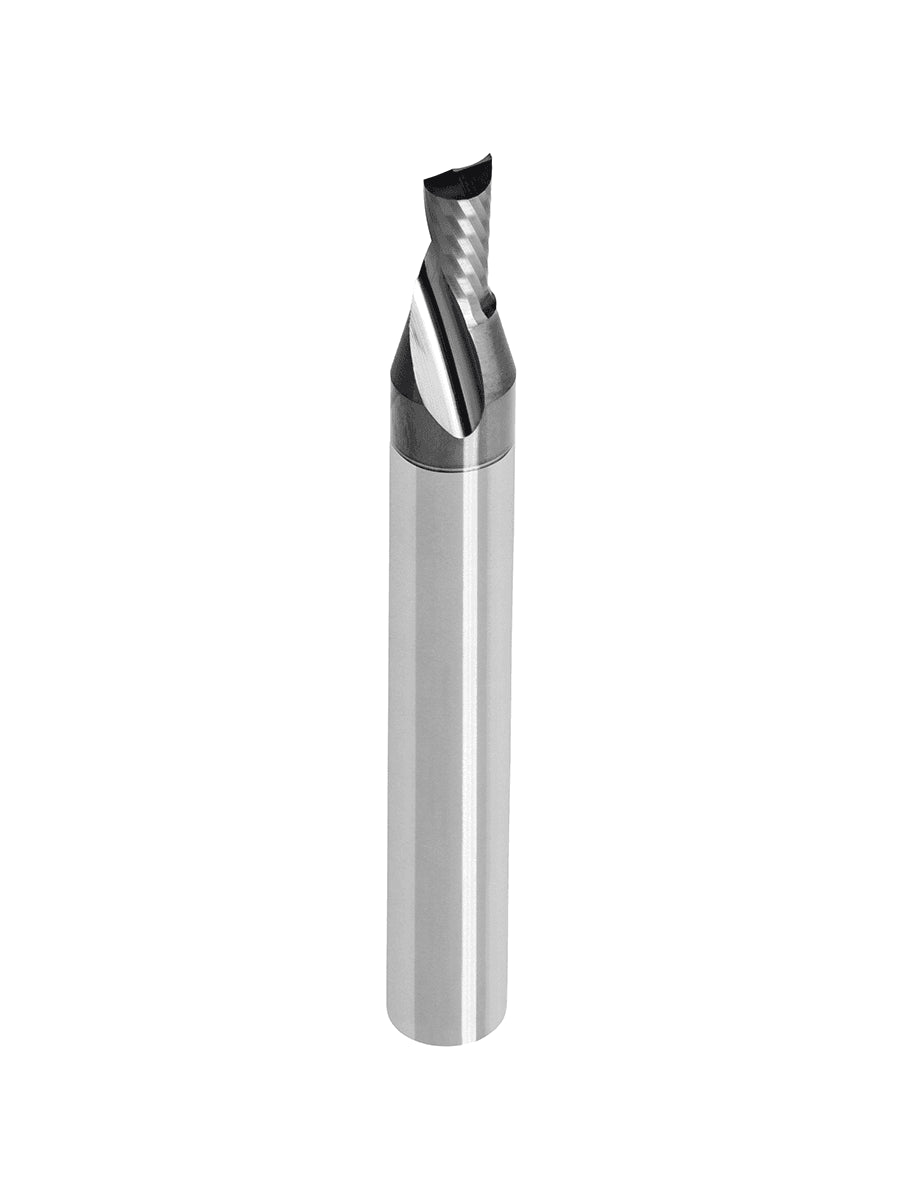

4002 - Fraise une dent courte revêtue hélice à gauche pour l'aluminium

Family 4002

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Particularly recommended for Dibond© type TAC and ACM

Smooth and polished flute, limited built-up edge effects

Coated cutter, for use without lubrication,

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4002-X0300
Part number with ring: 4002-X0300-B
Lead time: 48 hours

Dry cutting

Features

Dry cutting
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4002-X0200 2.0 3.0* 3.0 30.0 1
4002-X0300 3.0 6.0* 4.5 50.0 1
4002-X0300-B 3.0 6.0* 4.5 50.0 1
4002-X0400 4.0 6.0* 6.0 50.0 1
4002-X0400-B 4.0 6.0* 6.0 50.0 1
* Reinforced tail
