4003 - Fraises deux dents à rainurer pour métaux non-ferreux

Family 4003

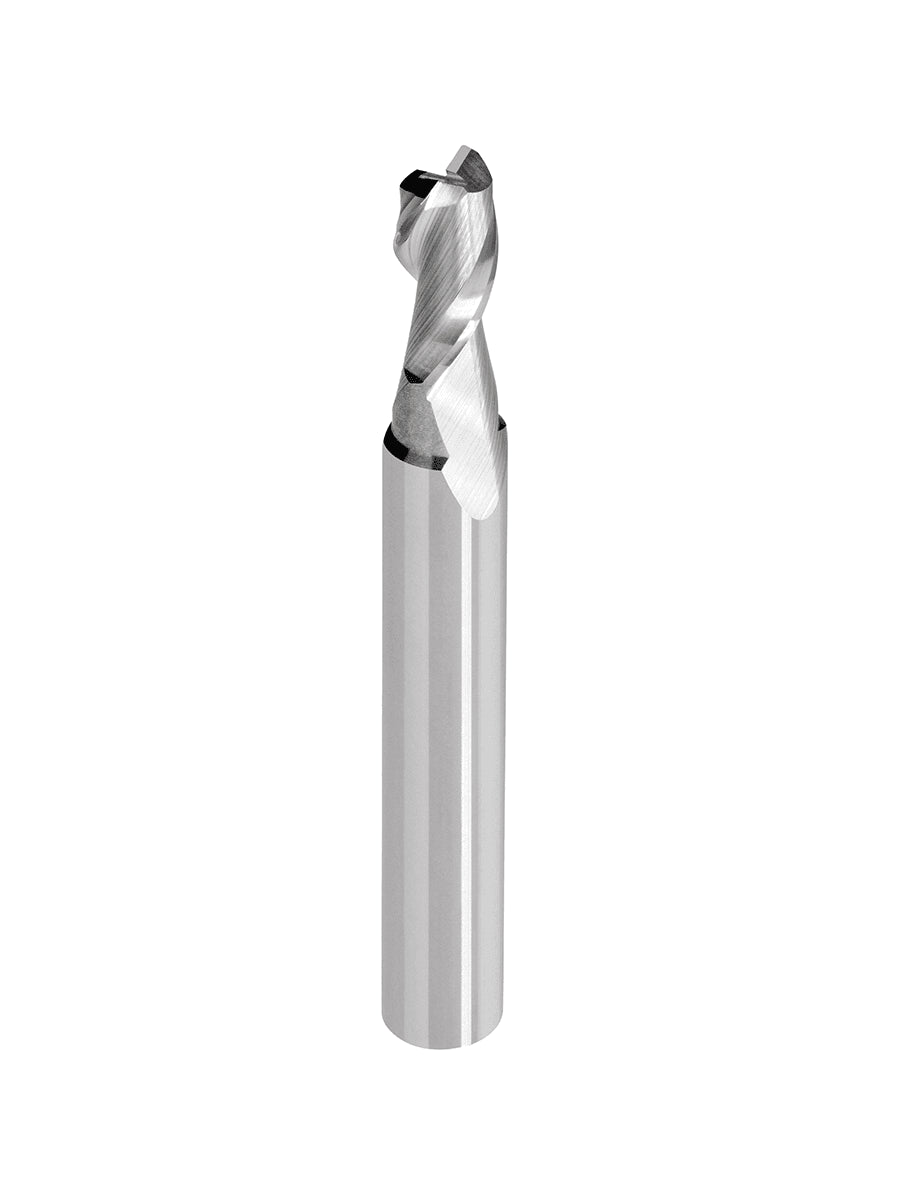

Two-flute cutters for non-ferrous metals with a small protective

chamfer

Smooth and polished flute, limited built-up edge effects

Cuts slots in certain plastics, resins, compact laminates and Corian®.
Improves surface finishes at the bottom of a pocket.
Coating on demand

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4003--0300
Part no. with ring: 4003--0300-B
Lead time: 48 hours

Use coolant

Features

Use coolant
Milling
Slotting

Machined materials

Non ferrous metals

Possible materials

Hardwoods
Compact laminates
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z Chamfer -
4003--0200 2.0 6.0* 6.0 50.0 2 0.1
4003--0200-B 3.0 6.0* 6.0 50.0 2 0.1
4003--0300 3.0 6.0* 7.0 50.0 2 0.1
4003--0300-B 3.0 6.0* 7.0 50.0 2 0.1
4003--0400 4.0 6.0* 8.0 50.0 2 0.1
4003--0400-B 4.0 6.0* 8.0 50.0 2 0.1
4003--0500 5.0 6.0* 10.0 50.0 2 0.2
4003--0500-B 5.0 6.0* 10.0 50.0 2 0.2
4003--0600 6.0 6.0 10.0 50.0 2 0.2
4003--0600-B 6.0 6.0 10.0 50.0 2 0.2
4003--0800 8.0 8.0 15.0 60.0 2 0.2
4003--1000 10.0 10.0 18.0 60.0 2 0.25
* Reinforced tail
