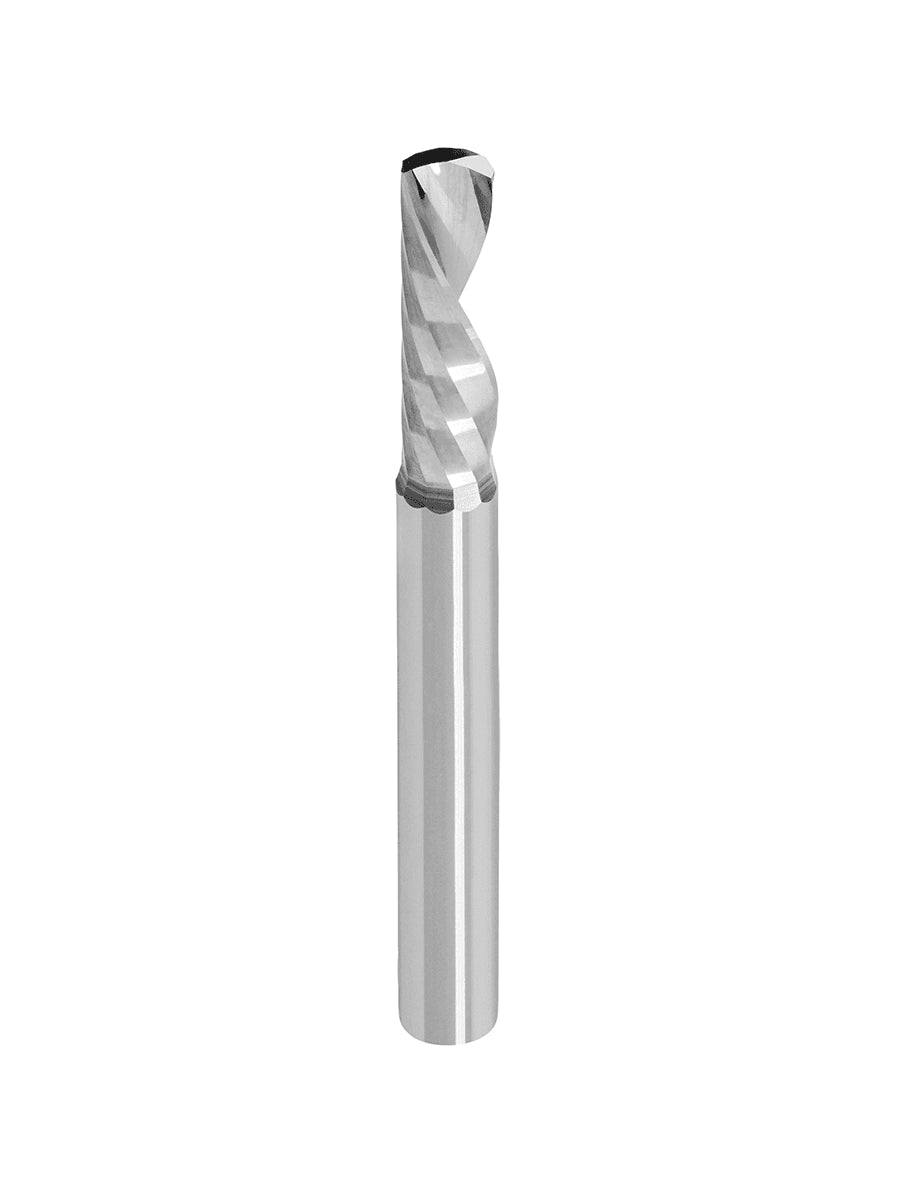

4012 - Fraise une dent hélice à gauche

Family 4012

4012 - Single-tooth cutters with left-hand helix

Versatile range

Smooth and polished flute, limited built-up edge effects

Downcut tool, downwards removal of chips

  • Workpieces held better due to the downwards force.
  • Limits the delamination of the upper face,
  • Suited to thin materials,
  • Milling thermoformed parts on CNC robots, reduction of vibrations.

Chips poorly evacuated :

Provide clear space underneath or good suction of chips

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part number without ring: 4012--0300B
Part no. with ring: 4012--0300B-B
Lead time: 48 hours

From 16,85 €

Features

Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Foamed materials
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4012--0100 1.0 3.0* 4.0 30.0 1
4012--0150 1.5 3.0* 6.0 30.0 1
4012--0200 2.0 2.0 8.0 30.0 1
4012--0200A 2.0 2.0 8.0 60.0 1
4012--0200B 2.0 3.0* 8.0 30.0 1
4012--0200C 2.0 6.0* 8.0 50.0 1
4012--0200C-B 2.0 6.0* 8.0 50.0 1
4012--0250 2.5 2.5 8.0 40.0 1
4012--0250A 2.5 2.5 8.0 60.0 1
4012--0300 3.0 3.0 10.0 40.0 1
4012--0300A 3.0 3.0 10.0 60.0 1
4012--0300B 3.0 6.0* 10.0 50.0 1
4012--0300B-B 3.0 6.0* 10.0 50.0 1
4012--0317 3.17 6.35* 12.7 50.8 1
4012--0400 4.0 4.0 12.0 50.0 1
4012--0400A 4.0 6.0* 12.0 50.0 1
4012--0400A-B 4.0 6.0* 12.0 50.0 1
4012--0400B 4.0 4.0 20.0 60.0 1
4012--0400C 4.0 4.0 30.0 70.0 1
4012--0400D - - -
4012--0476 4.76 6.35* 15.87 50.8 1
4012--0500 5.0 5.0 16.0 60.0 1
4012--0500A 5.0 6.0* 16.0 50.0 1
4012--0500A-B 5.0 6.0* 16.0 50.0 1
4012--0500B 5.0 5.0 30.0 70.0 1
4012--0600 6.0 6.0 20.0 60.0 1
4012--0600-B 6.0 6.0 20.0 60.0 1
4012--0600A 6.0 6.0 30.0 70.0 1
4012--0600A-B 6.0 6.0 30.0 70.0 1
4012--0600B 6.0 6.0 38.0 80.0 1
4012--0600B-B 6.0 6.0 38.0 80.0 1
4012--0635 6.35 6.35 19.05 50.8 1
4012--0800 8.0 8.0 22.0 60.0 1
4012--0800A 8.0 8.0 38.0 80.0 1
4012--1000 10.0 10.0 30.0 75.0 1
4012--1200 12.0 12.0 30.0 75.0 1
* Reinforced tail
