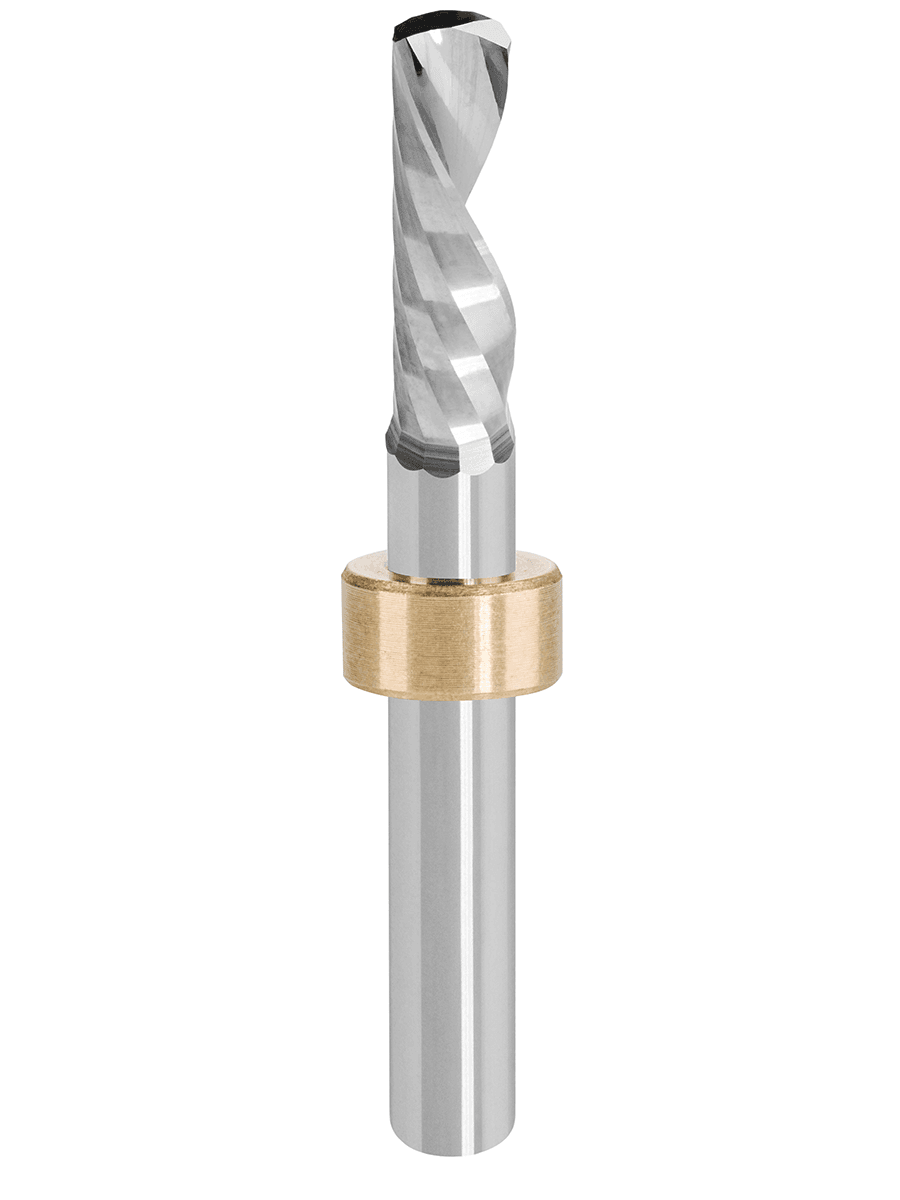

4012 TYPE ZUND - Fraise type Zund une dent hélice à gauche pour plastiques, PVC, PMMA, bois durs, bois tendres, bois composites, mousse

Family 4012 TYPE ZUND

4012 TYPE ZUND - Single-tooth cutters with left-hand helix with ring Zund machine compatible

RINGED VERSION FOR TOOLS WITH Ø6 SHANK.

Versatile range

Smooth and polished flute, limited built-up edge effects

Downcut tool, downwards removal of chips

  • Workpieces held better due to the downwards force.
  • Limits the delamination of the upper face,
  • Suited to thin materials,
  • Milling thermoformed parts on CNC robots, reduction of vibrations.

Chips poorly evacuated :

Provide clear space underneath or good suction of chips

Lead time: 48 hours

From 31,44 €
Solid carbideDowncut tool

Features

Solid carbide
Downcut tool
Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Foamed materials
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4012--0200C-B 2.0 6.0* 8.0 50.0 1
4012--0300B-B 3.0 6.0* 10.0 50.0 1
4012--0400A-B 4.0 6.0* 12.0 50.0 1
4012--0500A-B 5.0 6.0* 16.0 50.0 1
4012--0600-B 6.0 6.0 20.0 60.0 1
4012--0600A-B 6.0 6.0 30.0 70.0 1
4012--0600B-B 6.0 6.0 38.0 80.0 1
* Reinforced tail
