4013 - Fraise une dent hélice à droite

Family 4013

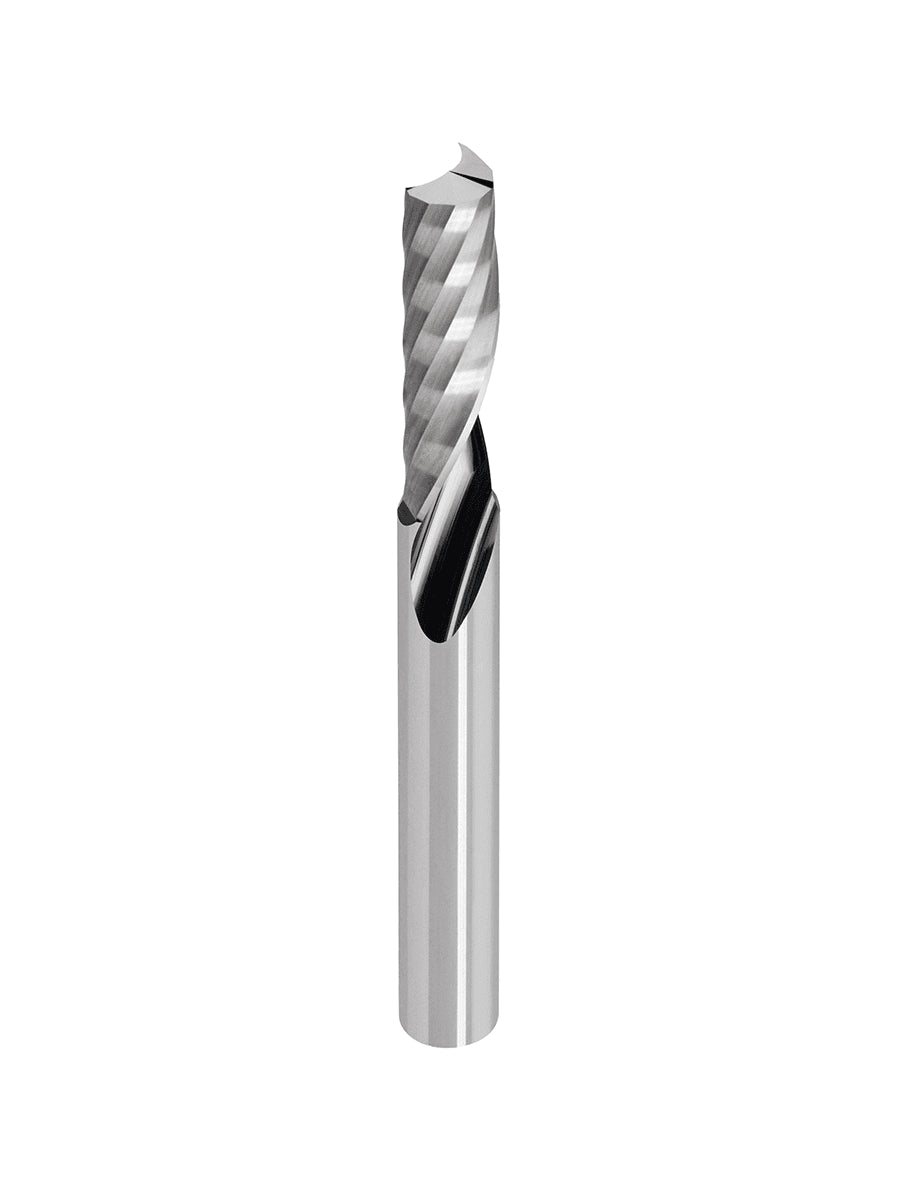

4013 - Single-tooth cutters with right-hand helix

The most versatile range.

Smooth and polished flute, limited built-up edge effects.

Upcut tool, upwards chip removal :

Chips evacuated efficiently.
The most commonly used.

When possible, select short cutters (cutting length = 2 x Ø):

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4013--0300A
Part no. with ring: 4013--0300A-B
Lead time: 48 hours

From 16,85 €

Features

Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Foamed materials
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4013--0100 1.0 3.0* 4.0 30.0 1
4013--0150 1.5 3.0* 6.0 30.0 1
4013--0200 2.0 2.0 4.0 30.0 1
4013--0200A 2.0 6.0 4.0 50.0 1
4013--0200A-B 2.0 6.0* 4.0 50.0 1
4013--0200B 2.0 2.0 8.0 30.0 1
4013--0200C 2.0 2.0 8.0 60.0 1
4013--0200D 2.0 3.0* 8.0 30.0 1
4013--0200E 2.0 6.0* 8.0 50.0 1
4013--0200E-B 2.0 6.0* 8.0 50.0 1
4013--0250 2.5 2.5 8.0 40.0 1
4013--0250A 2.5 2.5 8.0 60.0 1
4013--0300 3.0 3.0 6.0 40.0 1
4013--0300A 3.0 6.0* 6.0 50.0 1
4013--0300A-B 3.0 6.0* 6.0 50.0 1
4013--0300B 3.0 3.0 10.0 40.0 1
4013--0300C 3.0 3.0 10.0 60.0 1
4013--0300D 3.0 6.0* 10.0 50.0 1
4013--0300D-B 3.0 6.0* 10.0 50.0 1
4013--0300E 3.0 3.0 12.0 40.0 1
4013--0300F 3.0 6.0* 12.0 50.0 1
4013--0300F-B 3.0 6.0* 12.0 50.0 1
4013--0300G 3.0 3.0 15.0 40.0 1
4013--0300H 3.0 3.0 20.0 60.0 1
4013--0300J 3.0 6.0* 20.0 60.0 1
4013--0300J-B 3.0 6.0* 20.0 60.0 1
4013--0317 3.17 3.17 12.7 50.8 1
4013--0317A 3.17 6.35* 12.7 50.8 1
4013--0400 4.0 4.0 8.0 50.0 1
4013--0400A 4.0 6.0* 8.0 50.0 1
4013--0400A-B 4.0 6.0* 8.0 50.0 1
4013--0400B 4.0 4.0 12.0 50.0 1
4013--0400C 4.0 6.0* 12.0 50.0 1
4013--0400C-B 4.0 6.0* 12.0 50.0 1
4013--0400D 4.0 4.0 14.0 50.0 1
4013--0400E 4.0 6.0* 14.0 50.0 1
4013--0400E-B 4.0 6.0* 14.0 50.0 1
4013--0400F 4.0 4.0 22.0 60.0 1
4013--0400F-NG - - -
4013--0400G 4.0 6.0* 22.0 60.0 1
4013--0400G-B 4.0 6.0* 22.0 60.0 1
4013--0400H 4.0 4.0 30.0 70.0 1
4013--0476 4.76 4.76 15.87 50.8 1
4013--0476A 4.76 6.35* 15.87 50.8 1
4013--0476B 4.76 6.35* 31.75 76.2 1
4013--0500 5.0 5.0 16.0 60.0 1
4013--0500A 5.0 6.0* 16.0 50.0 1
4013--0500A-B 5.0 6.0* 16.0 50.0 1
4013--0500B 5.0 5.0 22.0 60.0 1
4013--0500C 5.0 6.0* 22.0 60.0 1
4013--0500C-B 5.0 6.0* 22.0 60.0 1
4013--0500D 5.0 5.0 30.0 70.0 1
4013--0600 6.0 6.0 14.0 50.0 1
4013--0600-B 6.0 6.0 14.0 50.0 1
4013--0600A 6.0 6.0 22.0 60.0 1
4013--0600A-B 6.0 6.0 22.0 60.0 1
4013--0600B 6.0 6.0 32.0 70.0 1
4013--0600B-B 6.0 6.0 32.0 70.0 1
4013--0600C 6.0 6.0 38.0 80.0 1
4013--0600C-B 6.0 6.0 38.0 80.0 1
4013--0635 6.35 6.35 19.05 50.8 1
4013--0635A 6.35 6.35 28.57 76.2 1
4013--0635B 6.35 6.35 38.1 76.2 1
4013--0800 8.0 8.0 22.0 60.0 1
4013--0800A 8.0 8.0 32.0 70.0 1
4013--0800B 8.0 8.0 38.0 80.0 1
4013--0800C 8.0 8.0 42.0 80.0 1
4013--1000 10.0 10.0 32.0 75.0 1
4013--1000A 10.0 10.0 45.0 85.0 1
4013--1200 12.0 12.0 32.0 75.0 1
4013--1200A 12.0 12.0 42.0 100.0 1
4013--1200B 12.0 12.0 52.0 105.0 1
4013--1400 14.0 14.0 62.0 120.0 1
* Reinforced tail
