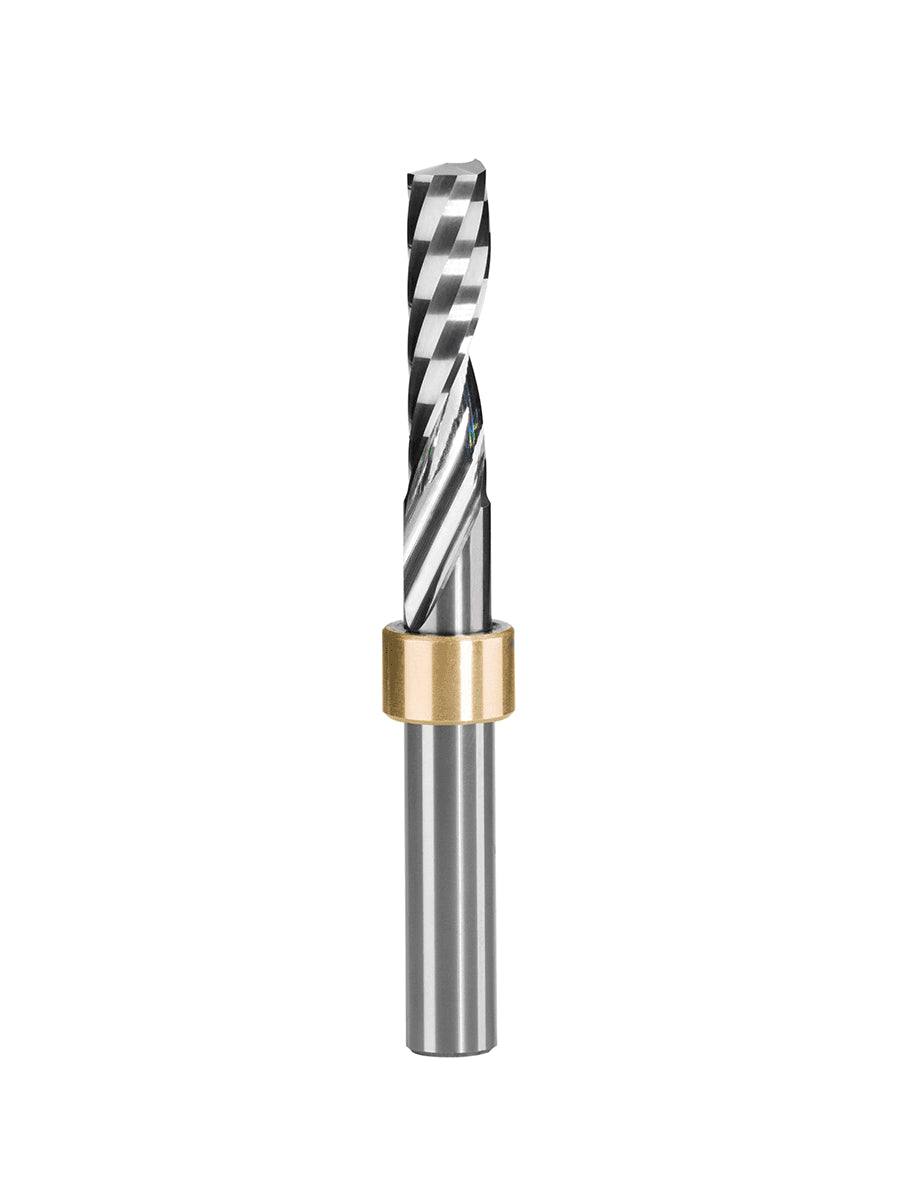

4013 TYPE ZUND - Fraise type Zünd une dent hélice à droite pour plastique, bois, PVC, mousse

Family 4013 TYPE ZUND

4013 TYPE ZUND - Single-tooth cutters with right-hand helix with ring Zund machine compatible

ZUND TYPPED MILLS, RINGED VERSION FOR TOOLS WITH Ø6 SHANK.

The most versatile range.

Smooth and polished flute, limited built-up edge effects.

Upcut tool, upwards chip removal :

Chips evacuated efficiently.
The most commonly used.

When possible, select short cutters (cutting length = 2 x Ø):

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.

Lead time: 48 hours

From 28,63 €
Solid carbideUpcut toolStraight cut

Features

Solid carbide
Upcut tool
Straight cut
Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Foamed materials
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4013--0200A-B 2.0 6.0* 4.0 50.0 1
4013--0200E-B 2.0 6.0* 8.0 50.0 1
4013--0300A-B 3.0 6.0* 6.0 50.0 1
4013--0300D-B 3.0 6.0* 10.0 50.0 1
4013--0300F-B 3.0 6.0* 12.0 50.0 1
4013--0300J-B 3.0 6.0* 20.0 60.0 1
4013--0400A-B 4.0 6.0* 8.0 50.0 1
4013--0400C-B 4.0 6.0* 12.0 50.0 1
4013--0400E-B 4.0 6.0* 14.0 50.0 1
4013--0400G-B 4.0 6.0* 22.0 60.0 1
4013--0500A-B 5.0 6.0* 16.0 50.0 1
4013--0500C-B 5.0 6.0* 22.0 60.0 1
4013--0600-B 6.0 6.0 14.0 50.0 1
4013--0600A-B 6.0 6.0 22.0 60.0 1
4013--0600B-B 6.0 6.0 32.0 70.0 1
4013--0600C-B 6.0 6.0 38.0 80.0 1
* Reinforced tail
