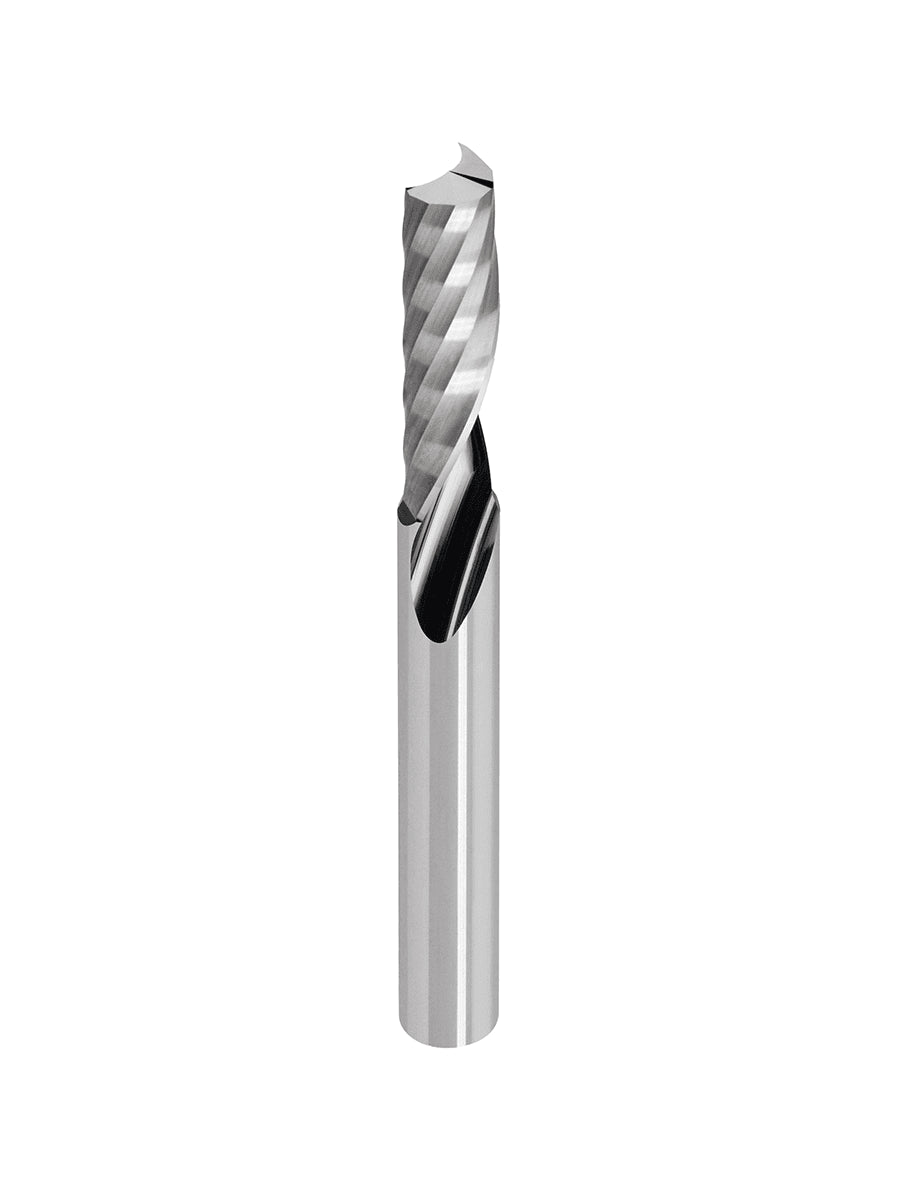

4013S - Fraise une dent hélice à droite avec plat en bout

Family 4013S

Cutters derived from the 4013 but with flat for finish

Smooth and polished flute, limited built-up edge effects

Improves the surface finish at the bottom of the pocket

Upcut tool, upwards removal of chips.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4013S-0300
Part no. with ring: 4013S-0300-B
Lead time: 48 hours

Features

Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4013S--0300 3.0 6.0* 10.0 50.0 1
4013S--0300-B 3.0 6.0* 10.0 50.0 1
4013S--0400 4.0 6.0* 12.0 50.0 1
4013S--0400-B 4.0 6.0* 12.0 50.0 1
4013S--0500 5.0 6.0* 16.0 50.0 1
4013S--0500-B 5.0 6.0* 16.0 50.0 1
4013S--0600 6.0 6.0 22.0 60.0 1
4013S--0600-B 6.0 6.0 22.0 60.0 1
4013S--0800 8.0 8.0 22.0 60.0 1
4013S--1000 10.0 10.0 32.0 75.0 1
4013S--1200 12.0 12.0 32.0 75.0 1
* Reinforced tail
