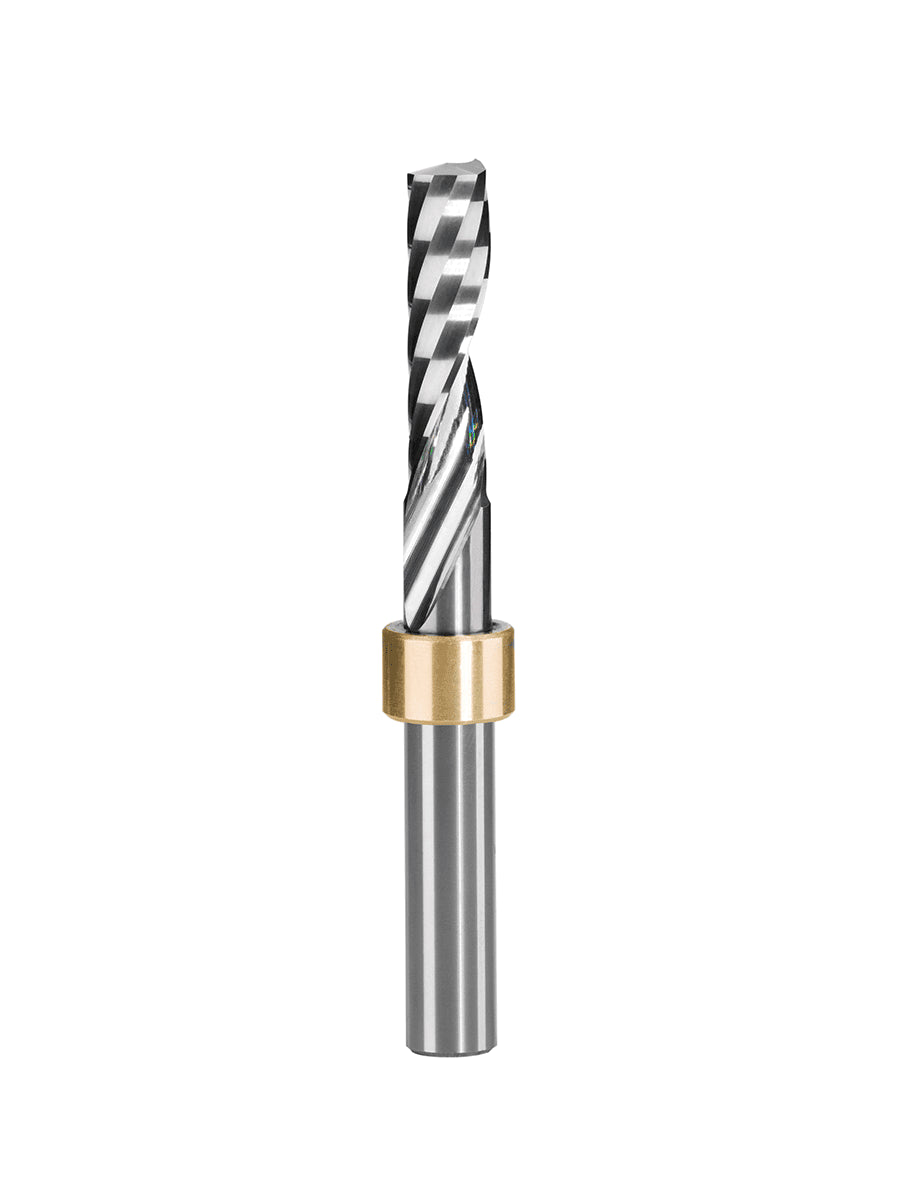

Family 4013S TYPE ZUND
RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
Cutters derived from the 4013 but with flat for finish
Smooth and polished flute, limited built-up edge effects
Improves the surface finish at the bottom of the pocket
Upcut tool, upwards removal of chips.
Lead time: 48 hours
Solid carbideUpcut tool
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | L2 | L1 | Z | - |
|---|---|---|---|---|---|---|
| 4013S--0300-B | 3.0 | 6.0* | 10.0 | 50.0 | 1 | Log in or Sign In to order |
| 4013S--0400-B | 4.0 | 6.0* | 12.0 | 50.0 | 1 | Log in or Sign In to order |
| 4013S--0500-B | 5.0 | 6.0* | 16.0 | 50.0 | 1 | Log in or Sign In to order |
| 4013S--0600-B | 6.0 | 6.0 | 22.0 | 60.0 | 1 | Log in or Sign In to order |
* Reinforced tail
