4014 - Fraises deux dents hélice à gauche

Family 4014

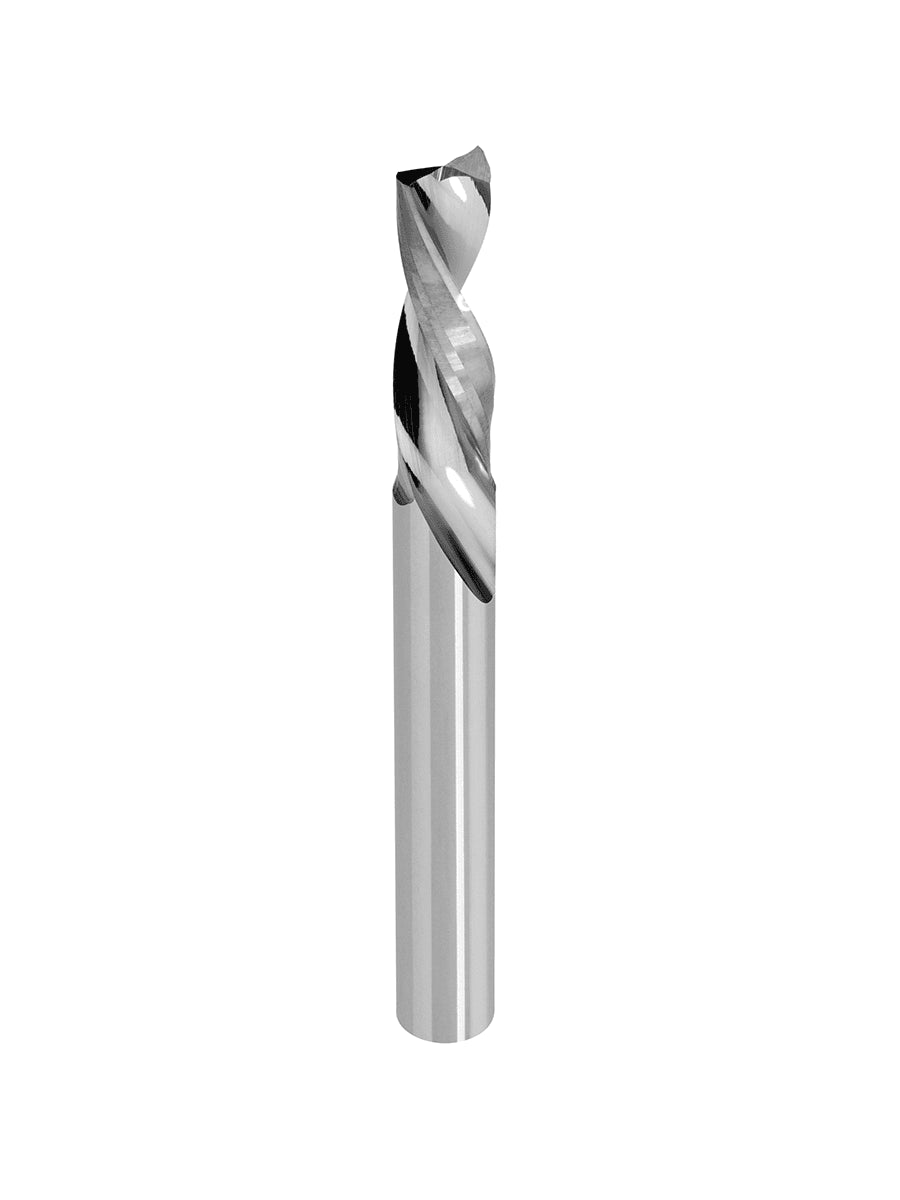

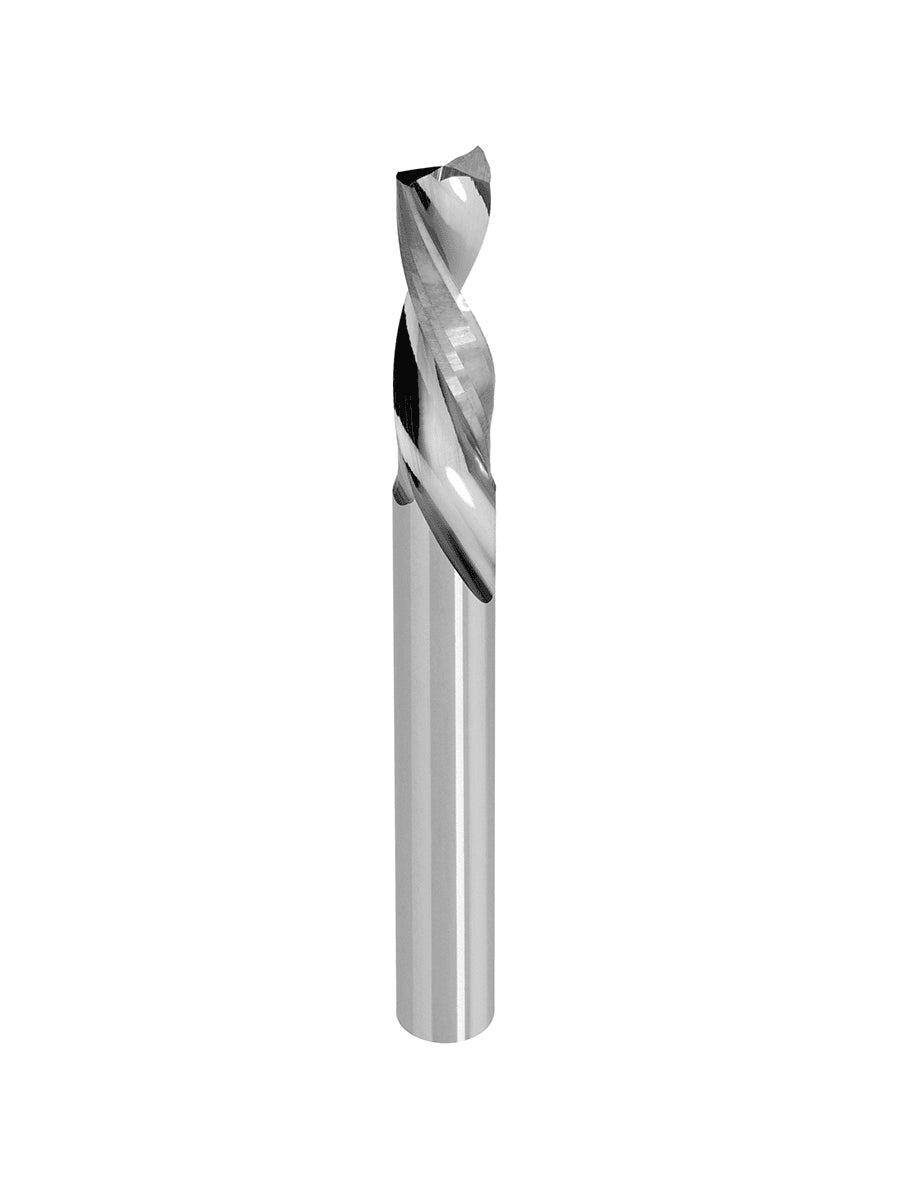

4014 - Two-tooth cutters with left-hand helix

Cutters derived from the 4012 but with two teeth

Smooth and polished flute, limited built-up edge effects

Improves the surface finish when used on foamed materials and woods compared with a one-flute cutter.

Downcut tool, downwards removal of chips

­ Workpieces held better due to the downwards force.

  • Limits the delamination of the upper face.
  • Suited to thin materials.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4014--0400A
Part no. with ring: 4014--0400A-B
Lead time: 48 hours

From 26,11 €

Features

Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Foamed materials

Possible materials

Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4014--0300 3.0 3.0 10.0 40.0 2
4014--0300A 3.0 6.0* 10.0 50.0 2
4014--0300A-B 3.0 6.0* 10.0 50.0 2
4014--0400 4.0 4.0 12.0 60.0 2
4014--0400A 4.0 6.0* 12.0 50.0 2
4014--0400A-B 4.0 6.0* 12.0 50.0 2
4014--0500 5.0 5.0 16.0 60.0 2
4014--0600 6.0 6.0 22.0 60.0 2
4014--0600-B 6.0 6.0 22.0 60.0 2
4014--0800 8.0 8.0 25.0 80.0 2
4014--1000 - - -
* Reinforced tail
