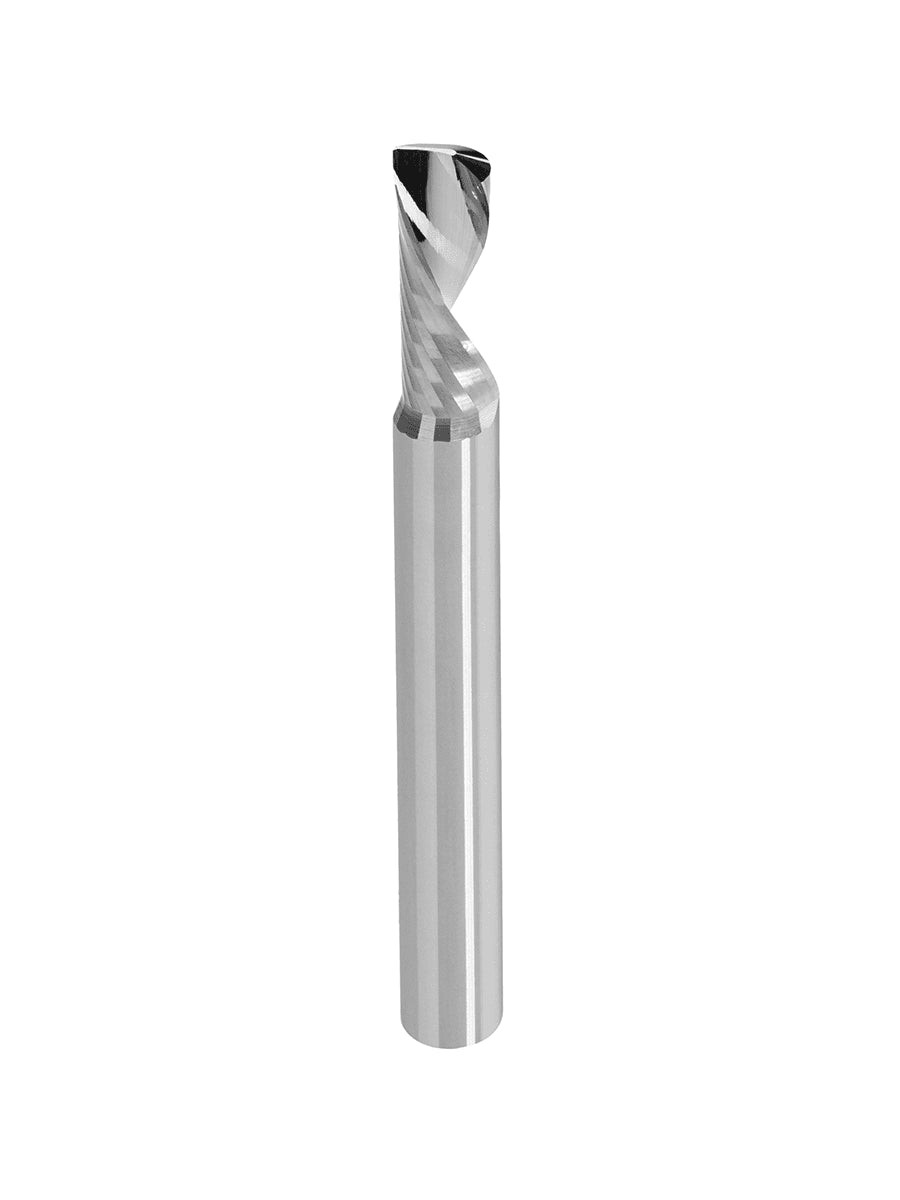

4022 - Fraises une dent hélice à gauche pour l'aluminium

Family 4022

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Smooth and polished flute, limited built-up edge effects

Downcut tool, downwards removal of chips

  • Workpieces held better due to the downwards force.
  • Limits the delamination of the upper face.
  • Suited to thin materials.
  • Milling thermoformed parts on CNC robots, reduction of vibrations.
    Uncoated cutter, lubrication recommended.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4022--0400
Part no. with ring: 4022--0400-B
Lead time: 48 hours

Use coolant

Features

Use coolant
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4022--0150 1.5 3.0* 4.0 30.0 1
4022--0200 2.0 3.0* 5.0 30.0 1
4022--0250 2.5 3.0* 6.0 30.0 1
4022--0300 3.0 3.0 8.0 40.0 1
4022--0317 3.17 6.35* 7.93 50.8 1
4022--0400 4.0 6.0* 10.0 50.0 1
4022--0400-B 4.0 6.0* 10.0 50.0 1
4022--0400A 4.0 4.0 12.0 60.0 1
4022--0476A 4.76 6.35* 12.7 50.8 1
4022--0500 5.0 6.0* 12.0 50.0 1
4022--0500-B 5.0 6.0* 12.0 50.0 1
4022--0500A 5.0 5.0 16.0 60.0 1
4022--0600 6.0 6.0 15.0 60.0 1
4022--0600-B 6.0 6.0 15.0 60.0 1
4022--0635 6.35 6.35 15.87 50.8 1
4022--0800 8.0 8.0 20.0 60.0 1
4022--1000 10.0 10.0 23.0 60.0 1
* Reinforced tail
