4022NHC - Fraises une dent revêtues hélice à gauche pour l'aluminium

Family 4022NHC

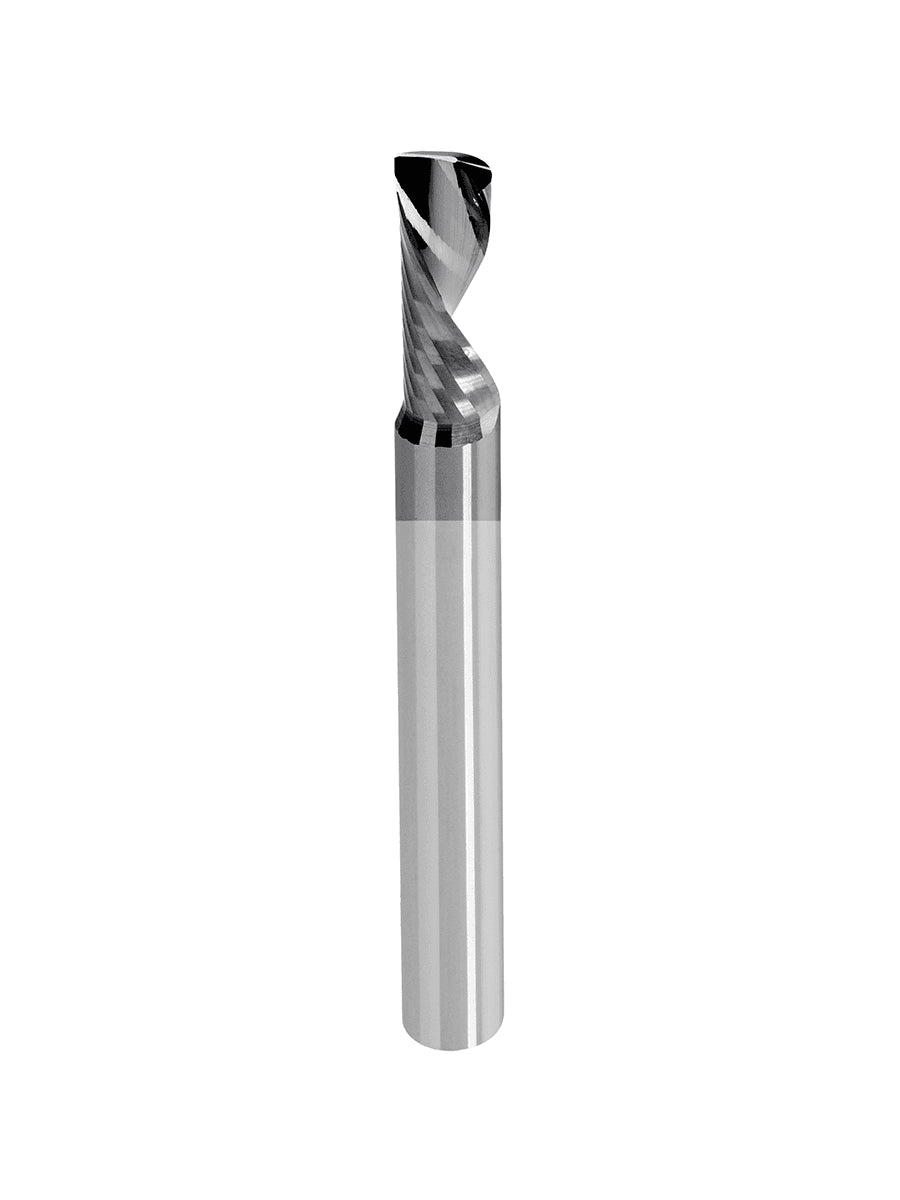

4022NHC - Single-tooth cutters with left-hand helix for aluminium

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Smooth and polished flute, limited built-up edge effects

Downcut tool, downwards removal of chips

Coated Plus version - Exists without coating

  • This coating allows lubrication-free machining
  • Greater resistance to abrasion.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4022-X0400
Part number with ring: 4022-X0400-B
Lead time: 48 hours

Tools not stored by default. Coating within 1 to 2 weeks

From 25,56 €

Features

Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4022-NHC0150 1.5 3.0* 4.0 30.0 1
4022-NHC0200 2.0 3.0* 5.0 30.0 1
4022-NHC0250 2.5 3.0* 6.0 30.0 1
4022-NHC0300 3.0 3.0 8.0 40.0 1
4022-NHC0317 3.17 3.17* 7.93 38.1 1
4022-NHC0400 4.0 6.0* 10.0 50.0 1
4022-NHC0400A 4.0 4.0 12.0 60.0 1
4022-NHC0476A 4.76 6.35* 12.7 50.8 1
4022-NHC0500 5.0 6.0* 12.0 50.0 1
4022-NHC0500A 5.0 5.0 16.0 60.0 1
4022-NHC0600 6.0 6.0 15.0 60.0 1
4022-NHC0635 6.35 6.35 15.87 50.8 1
4022-NHC0800 8.0 8.0 20.0 60.0 1
4022-NHC1000 10.0 10.0 23.0 60.0 1
* Reinforced tail
