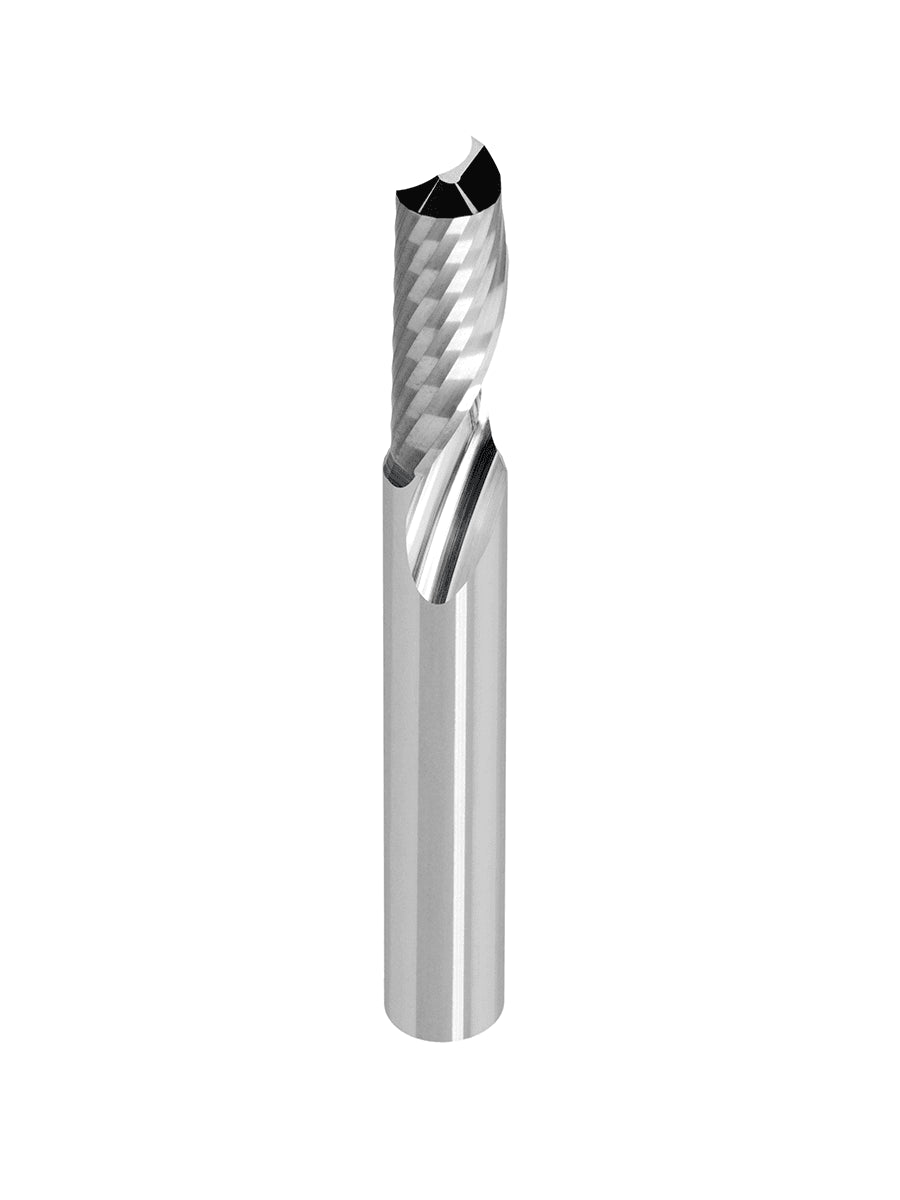

4023 - Fraise une dent hélice à droite pour l'aluminium

Family 4023

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.)

Smooth and polished flute, limited built-up edge effects

Upcut tool, upwards removal of chips.

Uncoated cutter, lubrication recommended.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4023--0600A
Part no. with ring: 4023--0600A-B
Lead time: 48 hours

Use coolant

Features

Use coolant
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4023--0150 1.5 3.0* 4.0 30.0 1
4023--0200 2.0 3.0* 5.0 30.0 1
4023--0250 2.5 3.0* 6.0 30.0 1
4023--0300 3.0 3.0 8.0 40.0 1
4023--0317 3.17 3.17 7.93 38.1 1
4023--0317A 3.17 6.35* 7.93 50.8 1
4023--0400 4.0 6.0* 10.0 50.0 1
4023--0400-B 4.0 6.0* 10.0 50.0 1
4023--0400A 4.0 4.0 12.0 60.0 1
4023--0400B 4.0 4.0 20.0 60.0 1
4023--0400C 4.0 4.0 30.0 70.0 1
4023--0476 4.76 4.76 12.7 50.8 1
4023--0476A 4.76 6.35* 12.7 50.8 1
4023--0500 5.0 6.0* 12.0 50.0 1
4023--0500-B 5.0 6.0* 12.0 50.0 1
4023--0500A 5.0 5.0 16.0 60.0 1
4023--0500B 5.0 8.0* 25.0 70.0 1
4023--0500C 5.0 5.0 30.0 70.0 1
4023--0500D 5.0 8.0* 35.0 80.0 1
4023--0600 6.0 6.0 15.0 50.0 1
4023--0600-B 6.0 6.0 15.0 50.0 1
4023--0600A 6.0 6.0 15.0 70.0 1
4023--0600A-B 6.0 6.0 15.0 70.0 1
4023--0600B 6.0 6.0 20.0 60.0 1
4023--0600B-B 6.0 6.0 20.0 60.0 1
4023--0600C 6.0 6.0 30.0 70.0 1
4023--0600C-B 6.0 6.0 30.0 70.0 1
4023--0600D 6.0 8.0* 30.0 80.0 1
4023--0600E 6.0 6.0 38.0 80.0 1
4023--0600E-B 6.0 6.0 38.0 80.0 1
4023--0635 6.35 6.35 15.87 50.8 1
4023--0800 8.0 8.0 20.0 60.0 1
4023--0800A 8.0 8.0 20.0 80.0 1
4023--0800B 8.0 8.0 38.0 80.0 1
4023--1000 10.0 10.0 23.0 60.0 1
4023--1000A 10.0 10.0 23.0 100.0 1
4023--1000B 10.0 10.0 30.0 75.0 1
* Reinforced tail
