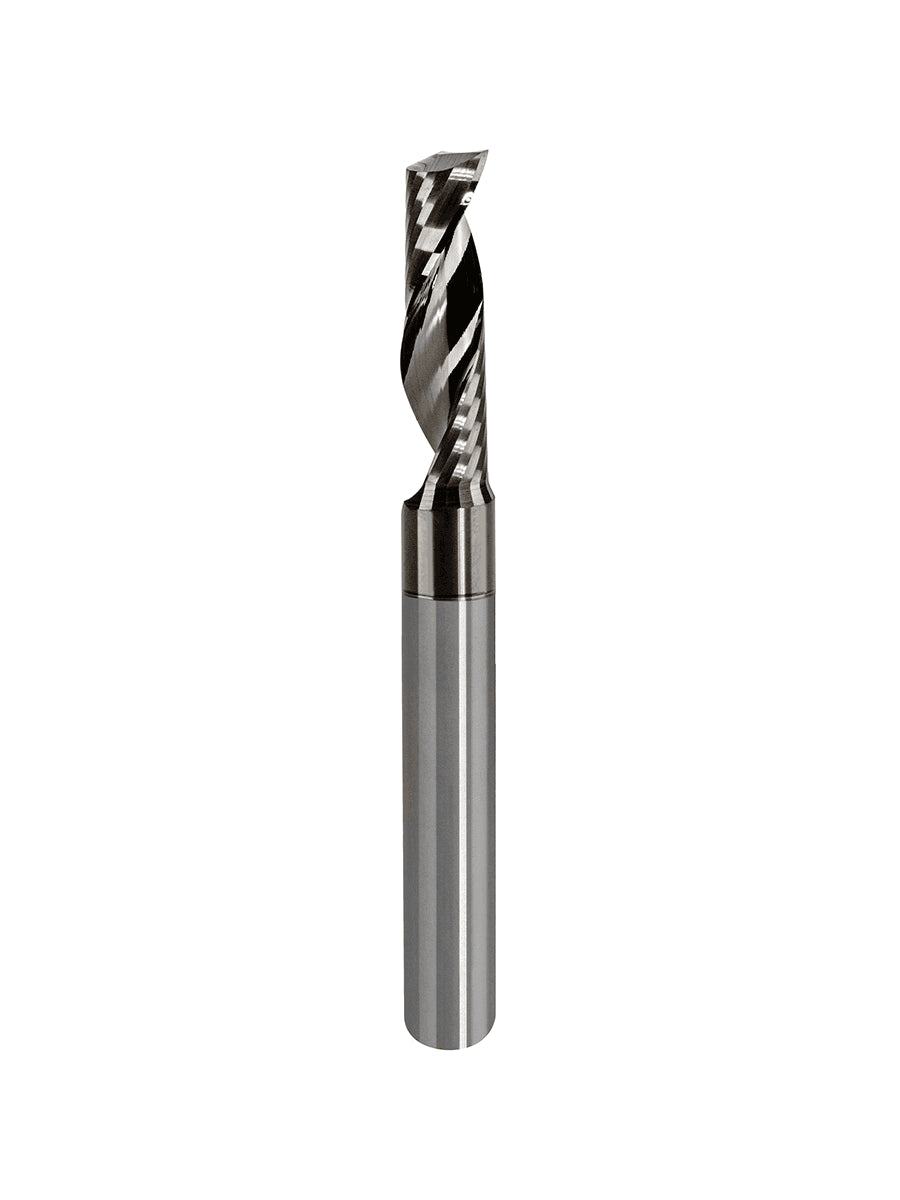

4023X - Fraises une dent revêtues hélice à droite pour l'aluminium

Family 4023X

Specific range for non-ferrous metals (aluminium, etc.)

Right-hand helix, rising chips.

Polyglazed flute and sharpening, limited chip sticking.

Standard coated version - Available uncoated

This coating allows lubrication-free machining

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4023-X0600A
Part no. with ring: 4023-X0600A-B
Lead time: 48 hours

Tools not stored by default. Coating within 1 to 2 weeks

Dry cutting

Features

Dry cutting
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4023-X0150 1.5 3.0* 4.0 30.0 1
4023-X0200 2.0 3.0* 5.0 30.0 1
4023-X0250 2.5 3.0* 6.0 30.0 1
4023-X0300 3.0 3.0 8.0 40.0 1
4023-X0317 3.17 3.17 7.93 38.1 1
4023-X0317A 3.17 6.35* 7.93 50.8 1
4023-X0400 4.0 6.0* 10.0 50.0 1
4023-X0400-B 4.0 6.0* 10.0 50.0 1
4023-X0400A 4.0 4.0 12.0 60.0 1
4023-X0400B 4.0 4.0 20.0 60.0 1
4023-X0400C 4.0 4.0 30.0 70.0 1
4023-X0476 4.76 4.76 12.7 50.8 1
4023-X0476A 4.76 6.35* 12.7 50.8 1
4023-X0500 5.0 6.0* 12.0 50.0 1
4023-X0500-B 5.0 6.0* 12.0 50.0 1
4023-X0500A 5.0 5.0 16.0 60.0 1
4023-X0500B 5.0 8.0* 25.0 70.0 1
4023-X0500C 5.0 5.0 30.0 70.0 1
4023-X0500D 5.0 8.0* 35.0 80.0 1
4023-X0600 6.0 6.0 15.0 50.0 1
4023-X0600-B 6.0 6.0 15.0 50.0 1
4023-X0600A 6.0 6.0 15.0 70.0 1
4023-X0600A-B 6.0 6.0 15.0 70.0 1
4023-X0600B 6.0 6.0 20.0 60.0 1
4023-X0600B-B 6.0 6.0 20.0 60.0 1
4023-X0600C 6.0 6.0 30.0 70.0 1
4023-X0600C-B 6.0 6.0 30.0 70.0 1
4023-X0600D 6.0 8.0* 30.0 80.0 1
4023-X0600E 6.0 6.0 38.0 80.0 1
4023-X0600E-B 6.0 6.0 38.0 80.0 1
4023-X0635 6.35 6.35 15.87 50.8 1
4023-X0800 8.0 8.0 20.0 60.0 1
4023-X0800A 8.0 8.0 20.0 80.0 1
4023-X0800B 8.0 8.0 38.0 80.0 1
4023-X1000 10.0 10.0 23.0 60.0 1
4023-X1000A 10.0 10.0 23.0 100.0 1
4023-X1000B 10.0 10.0 30.0 75.0 1
* Reinforced tail
