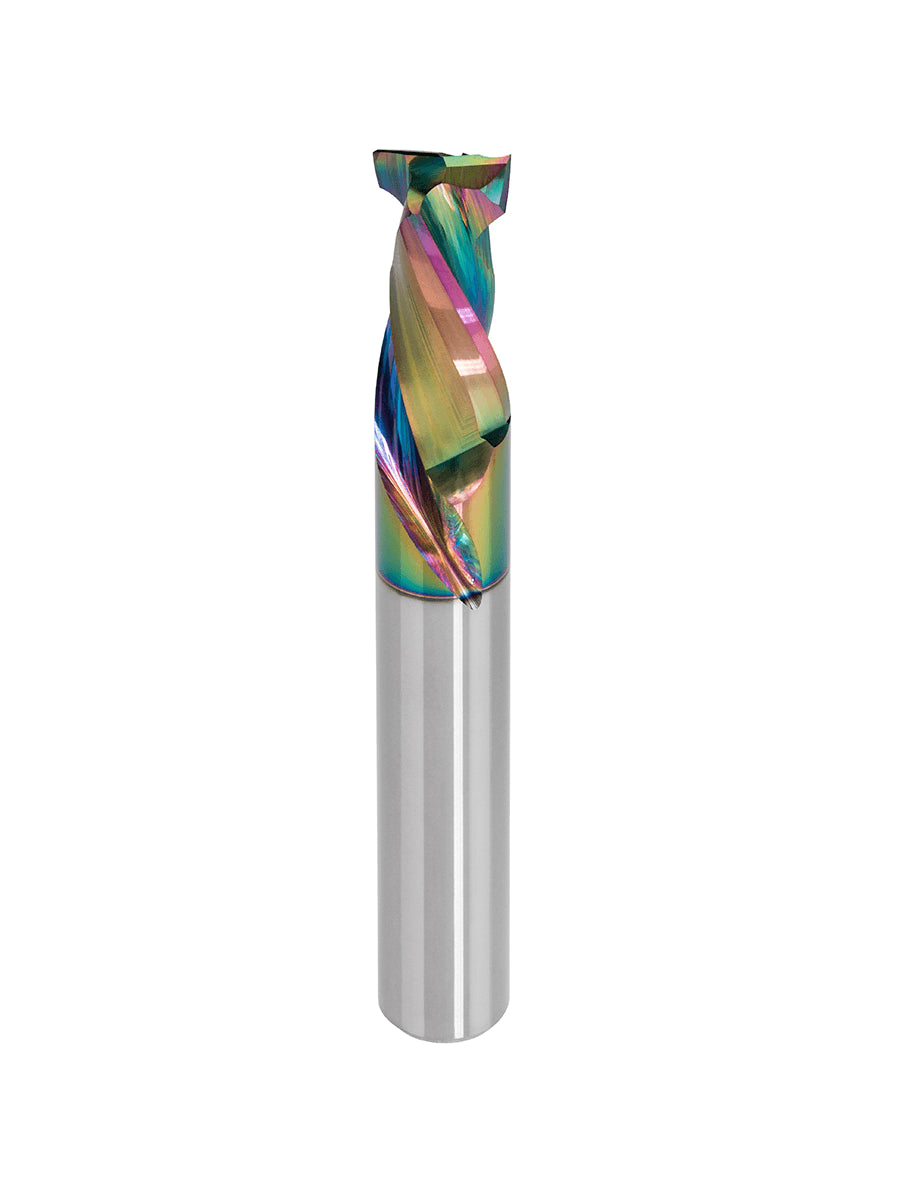

4030 - Fraises à compression revêtues - WOODSPEED

Family 4030

Compression cutters for the contour milling of wooden boards

The double-helix configuration - producing an upcut at the tip and then a downcut - prevents delamination of the two faces of the material

The cutting geometry allows high-speed machining and a perfect surface finish.
Long service life thanks to the specific carbide used and the coating.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4030--0600A
Part no. with ring: 4030--0600A-B
Lead time: 48 hours

Regular price
From 61,25 €

Features

Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods

Technical drawing

Schéma technique
Réf. D1 D2 L3 L2 L1 Z -
4030--0600 6.0 6.0 4.0 14.0 60.0 1+1
4030--0600A-B 6.0 6.0 4.0 22.0 60.0 1+1
4030--0800 8.0 8.0 4.0 22.0 70.0 2+2
4030--1000 10.0 10.0 4.0 22.0 75.0 2+2
4030--1000A 10.0 10.0 4.0 32.0 80.0 2+2
4030--1200 12.0 12.0 8.0 32.0 80.0 2+2
4030--1200A 12.0 12.0 12.0 42.0 100.0 2+2
