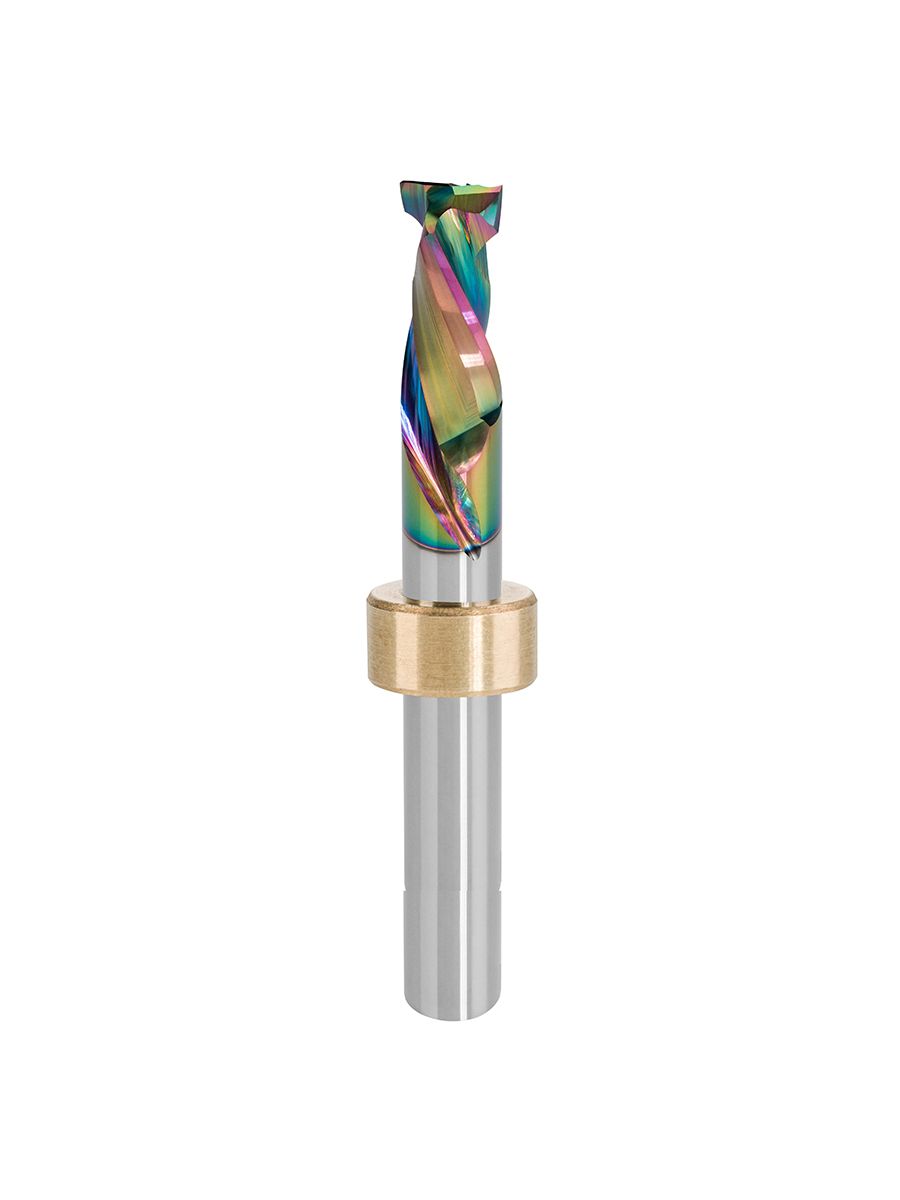

Family 4030 TYPE ZUND
RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
Compression cutters for the contour milling of wooden boards
The double-helix configuration - producing an upcut at the tip and then a downcut - prevents delamination of the two faces of the material
The cutting geometry allows high-speed machining and a perfect surface finish.
Long service life thanks to the specific carbide used and the coating.
Lead time: 48 hours
Solid carbideCoated toolCompression
Features
Machined materials
Technical drawing
| Réf. | D1 | D2 | L3 | L2 | L1 | Z | - |
|---|---|---|---|---|---|---|---|
| 4030--0600-B | 6.0 | 6.0 | 4.0 | 14.0 | 60.0 | 1+1 | Log in or Sign In to order |
| 4030--0600A-B | 6.0 | 6.0 | 4.0 | 22.0 | 60.0 | 1+1 | Log in or Sign In to order |
