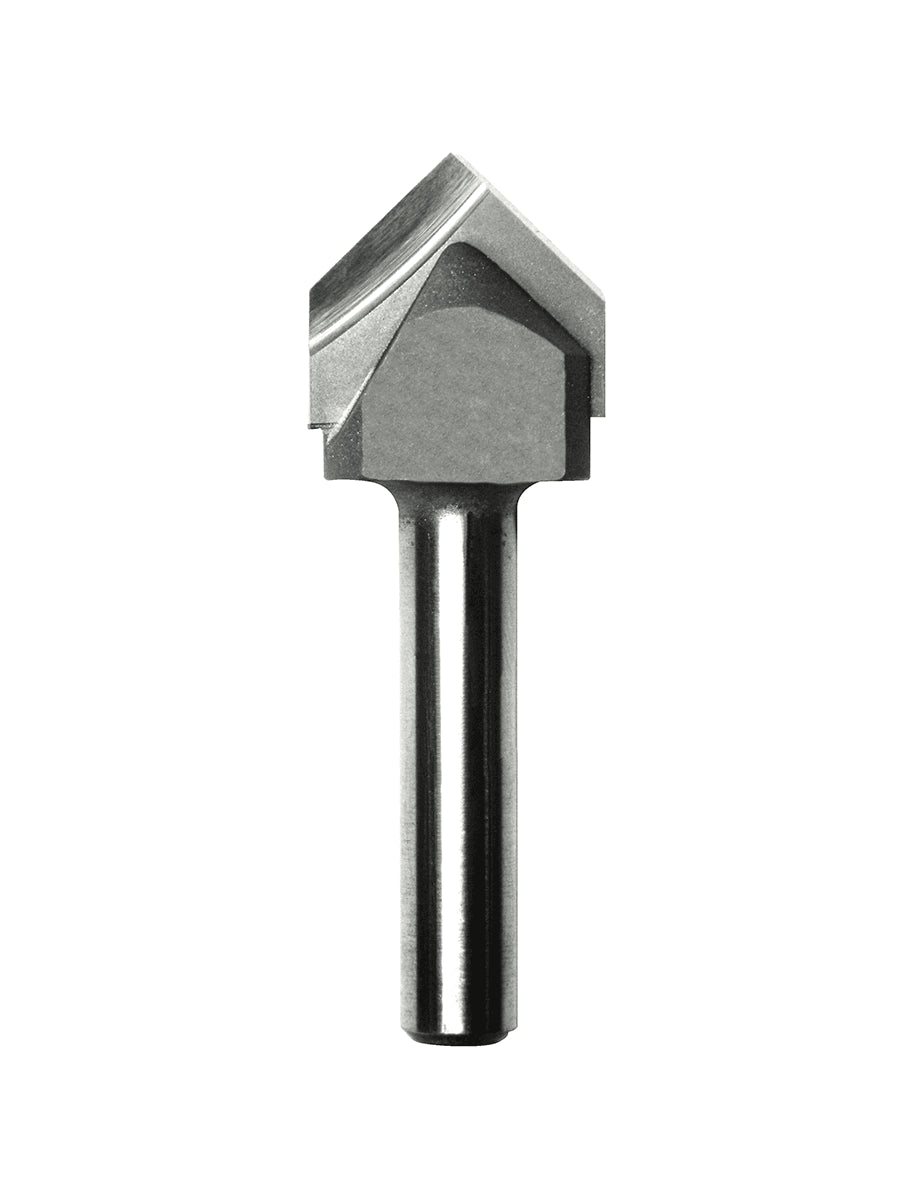

4040 - Fraise de rainage - pliage

Family 4040

Cutters for cutting slots - folding

Specially designed for ACM and TAC ( Dibond©, Alucobond© )

Coating on demand.

Features

Milling
Slotting
Milling with chamfer

Machined materials

Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 D3 L2 L1 α Z -
4040--090 20.0 8.0 3.0 8.5 60.0 90° 2
4040--135 20.0 8.0 2.0 3.7 60.0 135° 2
