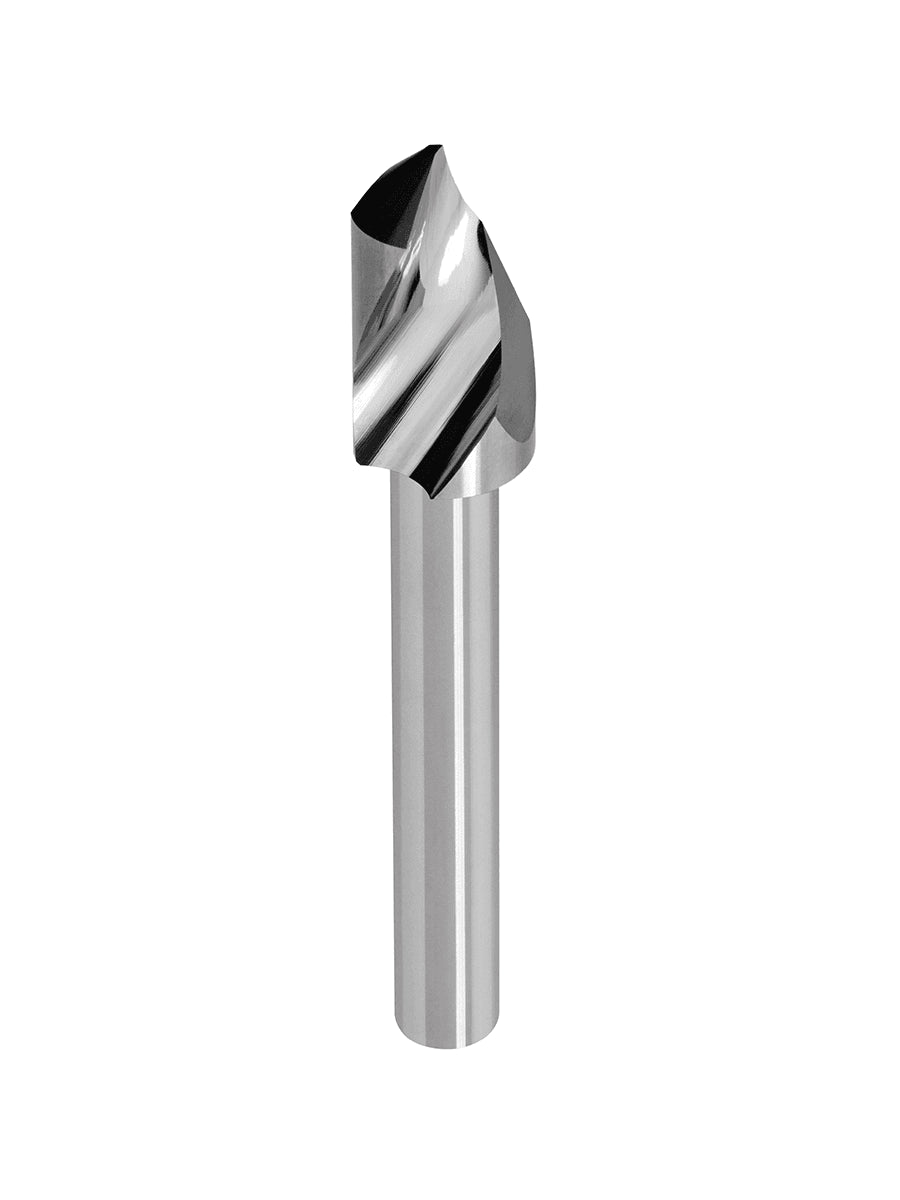

4041 - Fraise une dent conique de rainage - pliage

Family 4041

Cutters for slot cutting - folding

Specially designed for ACM and TAC ( Dibond©, Alucobond© )

Very good surface finish.
Improves the evacuation of chips.

Smooth and polished flute, limited built-up edge effects

Upcut tool, upwards removal of chips.

Coating on demand.
Machining of non-ferrous metals with spraying or coating

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4041--06P0030-100
Part no. with ring: 4041--06P0030-100-B
Lead time: 48 hours

Features

Milling
Slotting
Milling with chamfer

Machined materials

Aluminium faced composite panels

Possible materials

Non ferrous metals
Compact laminates

Technical drawing

Schéma technique
Réf. D1 D2 D3 L3 L2 L1 α Z -
4041--06P0030-100 6.0 6.0 0.3 2.3 - 60.0 100° 1
4041--06P0030-100-B 6.0 6.0 0.3 2.3 - 60.0 100° 1
4041--08P0050-100 8.0 8.0 0.5 3.1 - 60.0 100° 1
4041--10P0200-095 10.0 6.0 2.0 3.6 20.0 60.0 95° 1
4041--10P0200-095-B 10.0 6.0 2.0 3.6 20.0 60.0 95° 1
