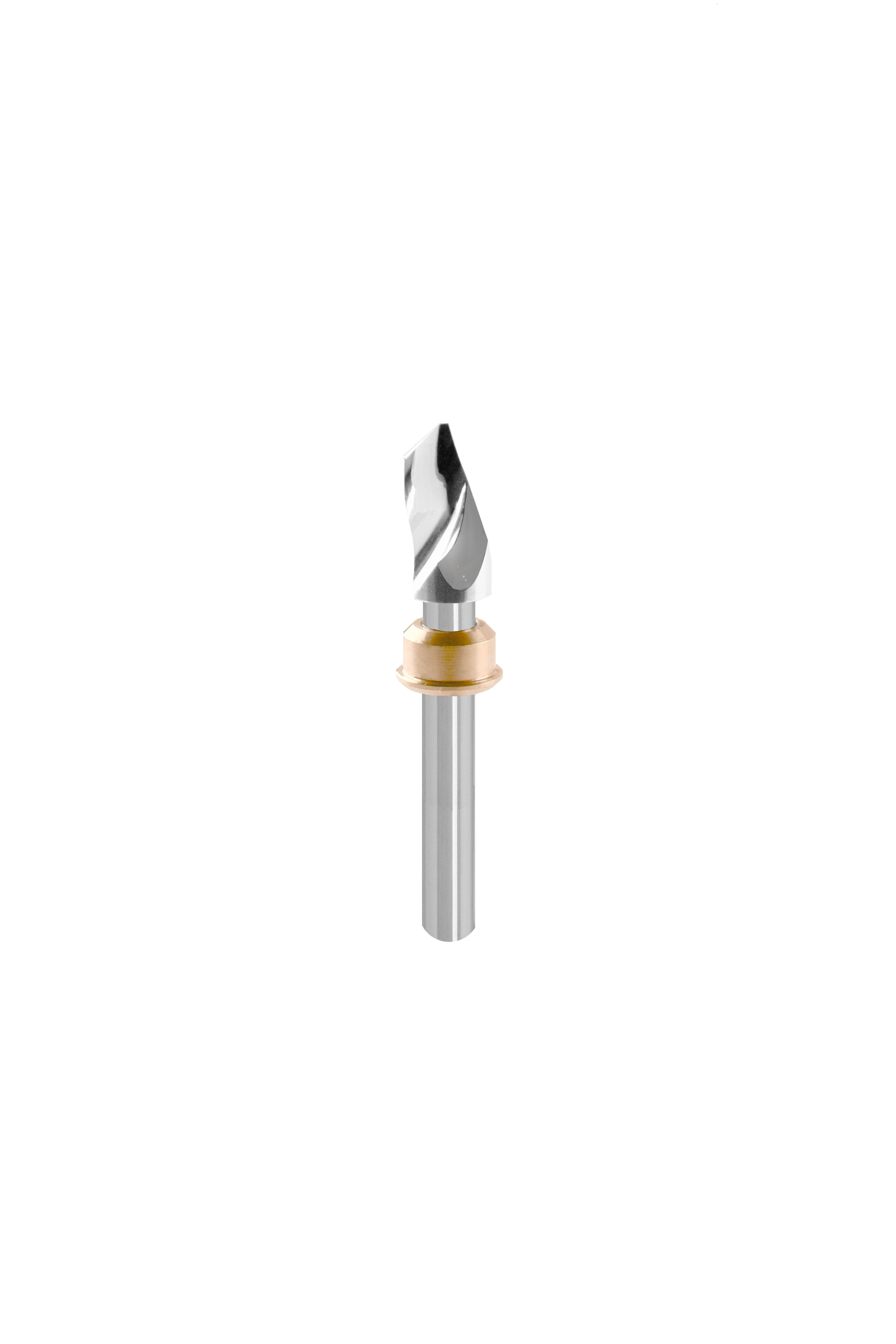

Family 4041 TYPE ZUND
RINGED VERSION FOR TOOLS WITH Ø6 SHANK.## Cutters for slot cutting - folding
Specially designed for ACM and TAC ( Dibond©, Alucobond© )
Very good surface finish.
Improves the evacuation of chips.
Smooth and polished flute, limited built-up edge effects
Upcut tool, upwards removal of chips.
Coating on demand.
Machining of non-ferrous metals with spraying or coating
Lead time: 48 hours
Solid carbide
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | D3 | L3 | L2 | L1 | α | Z | - |
|---|---|---|---|---|---|---|---|---|---|
| 4041--06P0030-100-B | 6.0 | 6.0 | 0.3 | 2.3 | - | 60.0 | 100° | 1 | Log in or Sign In to order |
| 4041--10P0200-095-B | 10.0 | 6.0 | 2.0 | 3.6 | 20.0 | 60.0 | 95° | 1 | Log in or Sign In to order |
