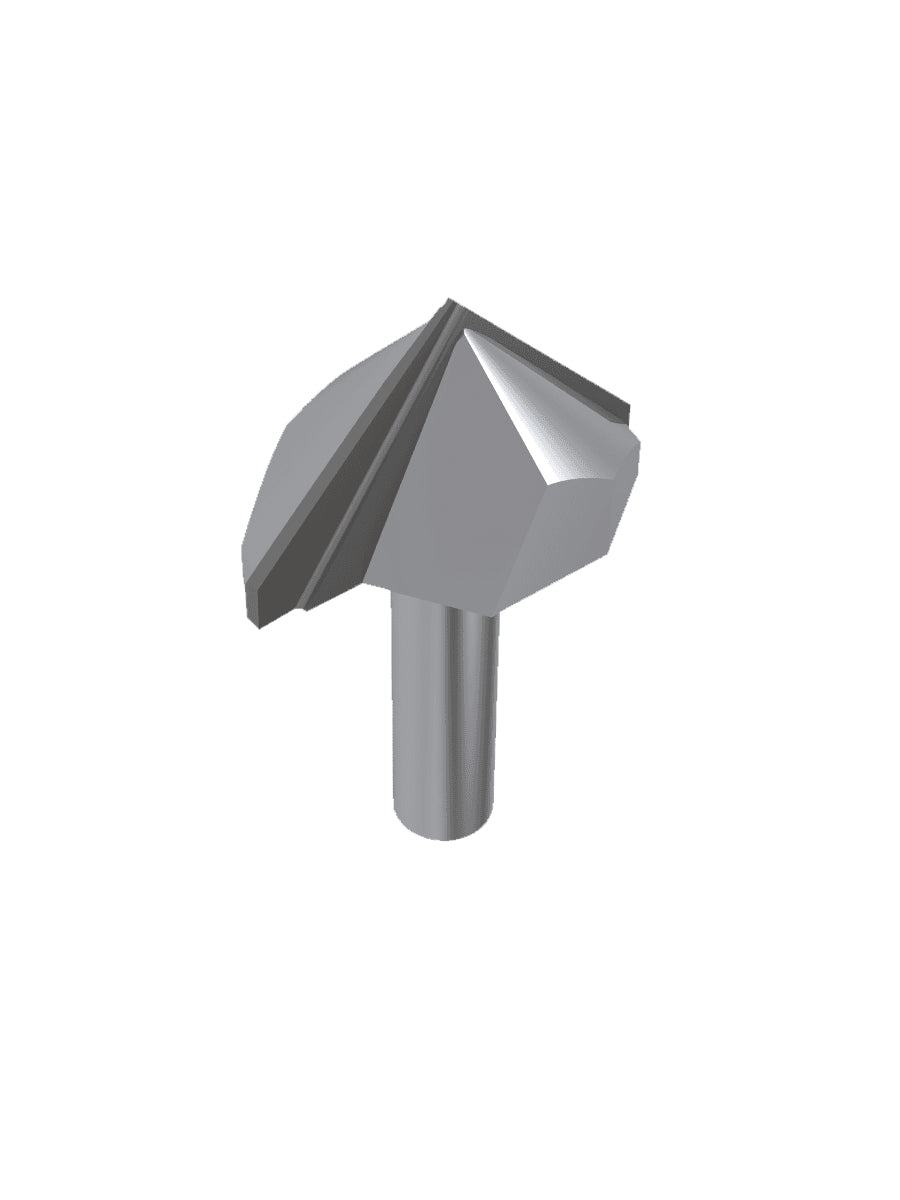

Family 4043
Specifically designed for soft materials (softwoods, composite wood products, foamed materials, etc.)
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | D3 | L3 | L2 | L1 | α | Z | - |
|---|---|---|---|---|---|---|---|---|---|
| 4043--32P0050-060 | 32.0 | 8.0 | 0.5 | 27.3 | 32.0 | 62.0 | 60° | 2 | Log in or Sign In to order |
| 4043--32P0050-090 | 32.0 | 8.0 | 0.5 | 15.75 | 20.0 | 50.0 | 90° | 2 | Log in or Sign In to order |
| 4043--32P0050-120 | 32.0 | 8.0 | 0.5 | 9.1 | 12.0 | 42.0 | 120° | 2 | Log in or Sign In to order |
