Family 4045

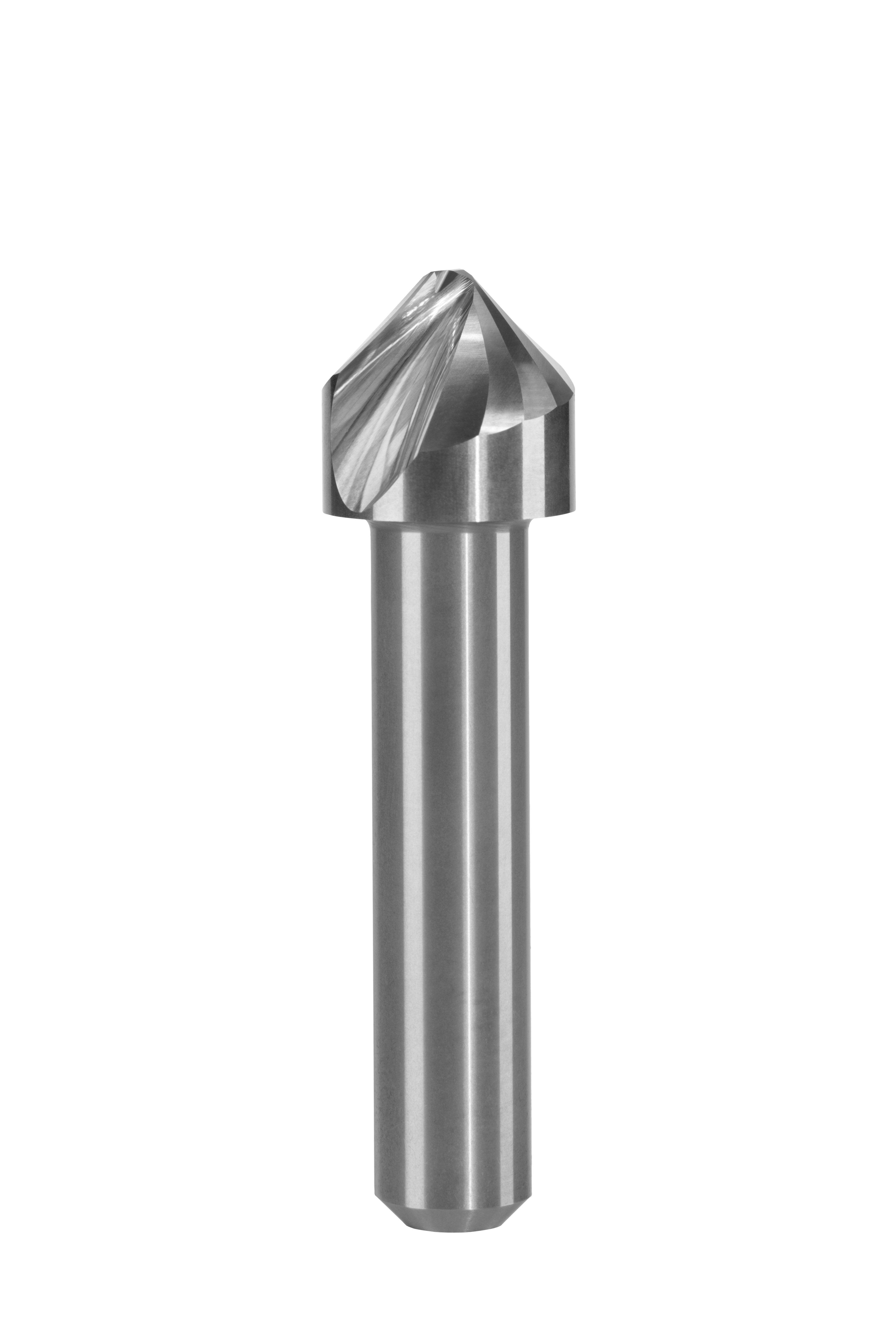

Creasing cutter - special high speed bending ACM, TAC (DIBOND, ALUCOBOND)
Very good surface condition
Improved chip evacuation
High working speed
Propeller on the right, rising chips
- Coating on request
- Machining of non-ferrous materials with coolant or coating
Solid carbide
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | D3 | L3 | L2 | L1 | α | Z | - |
|---|---|---|---|---|---|---|---|---|---|
| 4045--12-095 | 12.0 | 12.0 | 2.0 | 4.7 | 0.0 | 60.0 | 95 | 2 | Log in or Sign In to order |
| 4045--16-095 | 16.0 | 10.0 | 3.0 | 6.1 | 15.0 | 50.0 | 95 | 2 | Log in or Sign In to order |
| 4045--20-108 | 20.0 | 10.0 | 2.0 | 5.2 | 20.0 | 50.0 | 108 | 2 | Log in or Sign In to order |
