4053 - Fraise une dent haute efficience pour PMMA, Polycarbonate, HPL

Family 4053

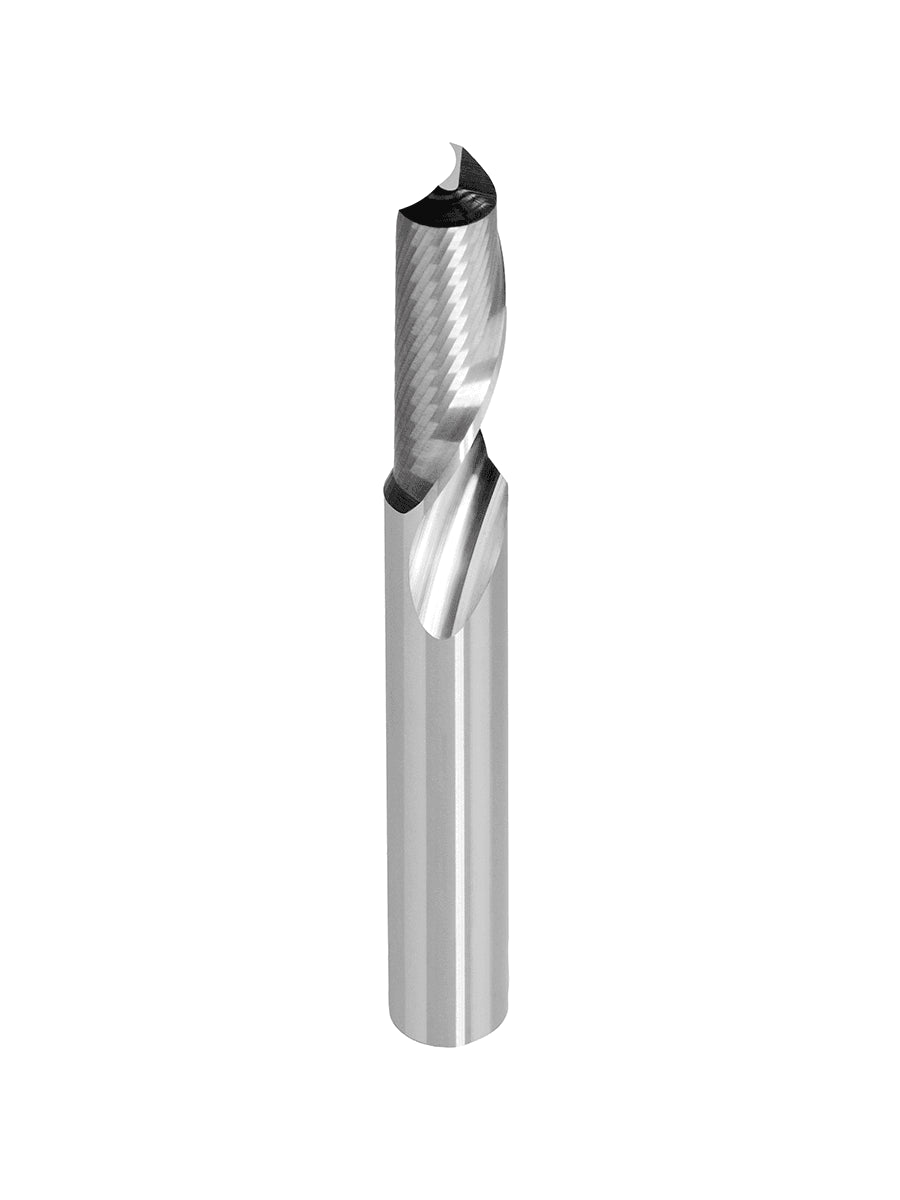

4053 - Single-tooth, high-efficiency cutters

This range’s geometry has been specially developed to produce a better surface finish in PMMA, Polycarbonate, PA6, Corian and Compact laminates.

Smooth and polished flute, limited built-up edge effects.

Upcut tool, upwards removal of chips

More resistant to abrasion.

When possible, select short cutters (cutting length = 2 x Ø):

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.

AVAILABLE IN RINGED VERSION FOR Ø6 SHANK TOOLS
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part number without ring: 4053--0200B
Part no. with ring: 4053--0200B-B
Lead time: 48 hours

From 20,30 €

Features

Milling
Slotting

Machined materials

Non ferrous metals
Compact laminates
Aluminium faced composite panels
Thermosetting plastics
Thermoplastics
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Glass filled plastics
Expanded pvc

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4053--0200 2.0 3.0* 4.0 30.0 1
4053--0200A 2.0 6.0* 4.0 50.0 1
4053--0200B 2.0 6.0* 6.0 50.0 1
4053--0200C 2.0 3.0* 8.0 30.0 1
4053--0300 3.0 3.0 6.0 40.0 1
4053--0300A 3.0 6.0* 6.0 50.0 1
4053--0300B 3.0 3.0 9.0 40.0 1
4053--0300C 3.0 6.0* 9.0 50.0 1
4053--0400 4.0 4.0 8.0 50.0 1
4053--0400A 4.0 6.0* 8.0 50.0 1
4053--0400B 4.0 4.0 13.0 50.0 1
4053--0400C 4.0 6.0* 13.0 50.0 1
4053--0476 4.76 4.76 12.7 50.8 1
4053--0500 5.0 5.0 16.0 60.0 1
4053--0500A 5.0 6.0* 16.0 50.0 1
4053--0600 6.0 6.0 16.0 50.0 1
4053--0600A 6.0 6.0 22.0 60.0 1
4053--0600B 6.0 6.0 32.0 70.0 1
4053--0635 6.35 6.35 15.87 50.8 1
4053--0800 8.0 8.0 22.0 60.0 1
4053--0800A 8.0 8.0 32.0 70.0 1
4053--0952 9.52 9.52 25.4 60.3 1
4053--1000 10.0 10.0 23.0 60.0 1
4053--1000A 10.0 10.0 32.0 75.0 1
4053--1200 12.0 12.0 42.0 100.0 1
* Reinforced tail
