4053 TYPE ZUND - Fraise Type Zünd une dent haute efficience pour PMMA, Polycarbonate, HPL

Family 4053 TYPE ZUND

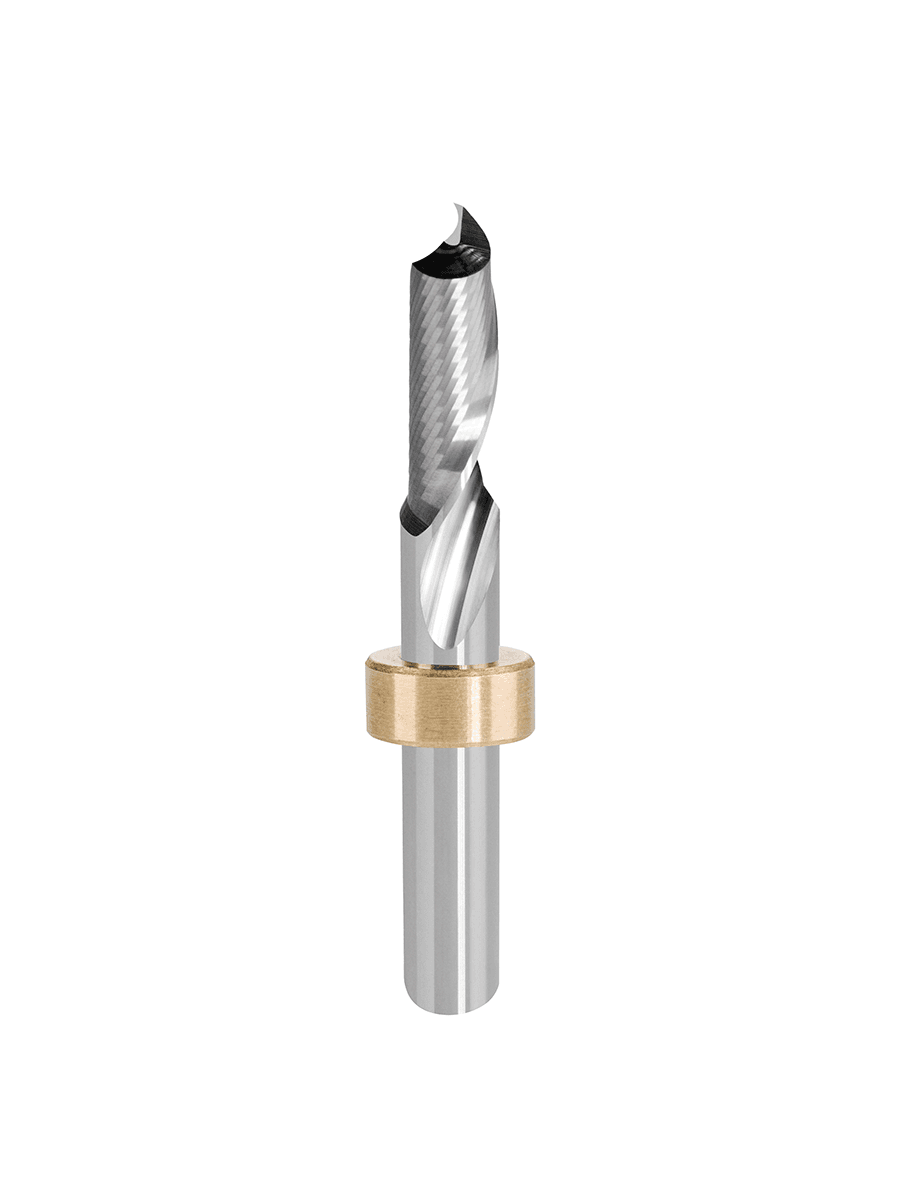

4053 TYPE ZUND - Single-tooth, high-efficiency cutters with ring Zund machine compatible

RINGED VERSION FOR Ø6 SHANK TOOLS

This range’s geometry has been specially developed to produce a better surface finish in PMMA, Polycarbonate, PA6, Corian and Compact laminates.

Smooth and polished flute, limited built-up edge effects.

Upcut tool, upwards removal of chips

More resistant to abrasion.

When possible, select short cutters (cutting length = 2 x Ø):

  • Improves surface finishes,
  • Longer service life of the tool,
  • Improves cutting conditions.

Lead time: 48 hours

From 38,35 €
Solid carbideUpcut tool

Features

Solid carbide
Upcut tool
Milling
Slotting

Machined materials

Non ferrous metals
Compact laminates
Aluminium faced composite panels
Thermosetting plastics
Thermoplastics
Aluminium

Possible materials

Composite wood products
Hardwoods
Softwoods
Glass filled plastics
Expanded pvc

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 Z -
4053--0200A-B 2.0 6.0* 4.0 50.0 1
4053--0200B-B 2.0 6.0* 6.0 50.0 1
4053--0300A-B 3.0 6.0* 6.0 50.0 1
4053--0300C-B 3.0 6.0* 9.0 50.0 1
4053--0400A-B 4.0 6.0* 8.0 50.0 1
4053--0400C-B 4.0 6.0* 13.0 50.0 1
4053--0500A-B 5.0 6.0* 16.0 50.0 1
4053--0600-B 6.0 6.0 16.0 50.0 1
4053--0600A-B 6.0 6.0 22.0 60.0 1
4053--0600B-B 6.0 6.0 32.0 70.0 1
* Reinforced tail
