4070 - Fraises à graver coniques

Family 4070

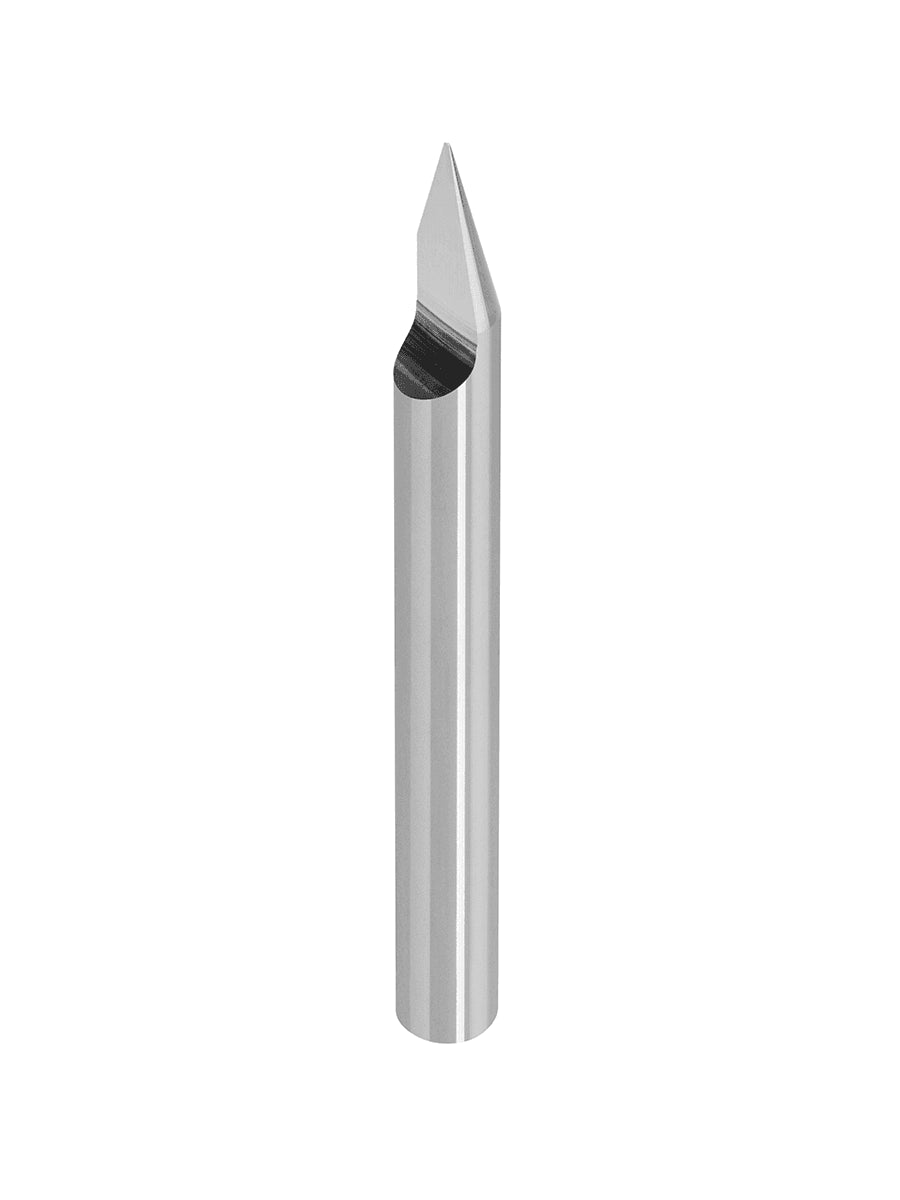

4070 - Conical engraving cutters

Conical, multi-material engraving cutters

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part no. without ring: 4070--06P0050-030
Part no. with ring: 4070--06P0050-030-B
Lead time: 48 hours

From 23,76 €

Features

Engraving
Milling with chamfer

Machined materials

Hardwoods
Softwoods
Non ferrous metals
Expanded pvc
Compact laminates
Steel faced composite panels
Aluminium faced composite panels
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Phenolic materials

Technical drawing

Schéma technique
Réf. D1 D2 L1 α Z -
4070--03P0010-040 0.1 3.0 30.0 40° 1
4070--03P0030-030 0.3 3.0 30.0 30° 1
4070--04P0010-030 0.1 4.0 60.0 30° 1
4070--04P0020-060 0.2 4.0 60.0 60° 1
4070--04P0030-030 0.3 4.0 60.0 30° 1
4070--06P0010-030 0.1 6.0 60.0 30° 1
4070--06P0010-030-B 0.1 6.0 60.0 30° 1
4070--06P0040-060 0.4 6.0 60.0 60° 1
4070--06P0040-060-B 0.4 6.0 60.0 60° 1
4070--06P0050-030 0.5 6.0 60.0 30° 1
4070--06P0050-030-B 0.5 6.0 60.0 30° 1
