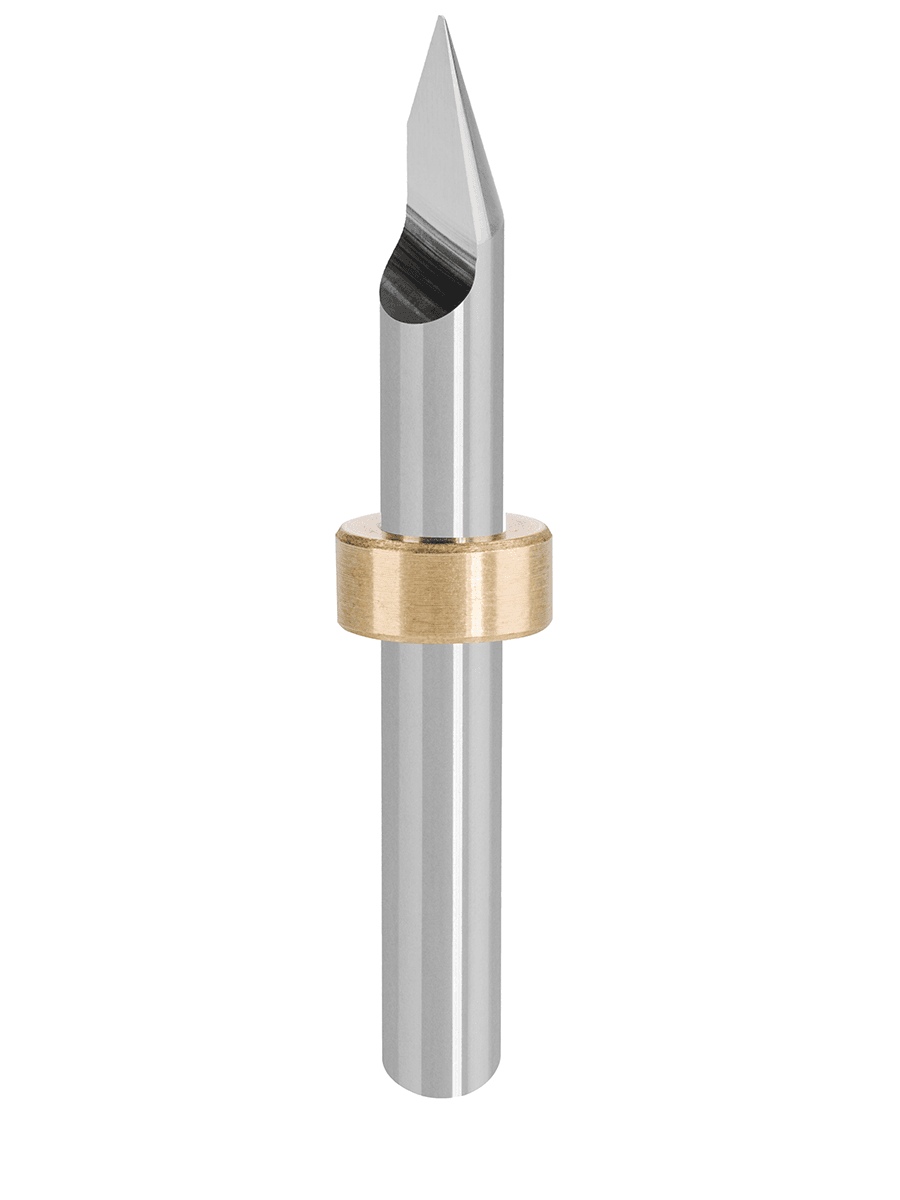

4070 TYPE ZUND - Fraises Type Zünd à graver coniques multi-matériaux

Family 4070 TYPE ZUND

4070 TYPE ZUND - Conical engraving cutters with ring Zund machine compatible

RINGED VERSION FOR TOOLS WITH Ø6 SHANK.

Conical, multi-material engraving cutters

Lead time: 48 hours

From 42,78 €
Solid carbide

Features

Solid carbide
Engraving
Milling with chamfer

Machined materials

Hardwoods
Softwoods
Non ferrous metals
Expanded pvc
Compact laminates
Steel faced composite panels
Aluminium faced composite panels
Thermosetting plastics
Thermoplastics

Possible materials

Glass filled plastics
Phenolic materials

Technical drawing

Schéma technique
Réf. D1 D2 L1 α Z -
4070--06P0010-030-B 0.1 6.0 60.0 30° 1
4070--06P0010-090-B 0.1 6.0 60.0 90° 1
4070--06P0040-060-B 0.4 6.0 60.0 60° 1
4070--06P0050-030-B 0.5 6.0 60.0 30° 1
4070--06P0050-040-B 0.5 6.0 60.0 40° 1
