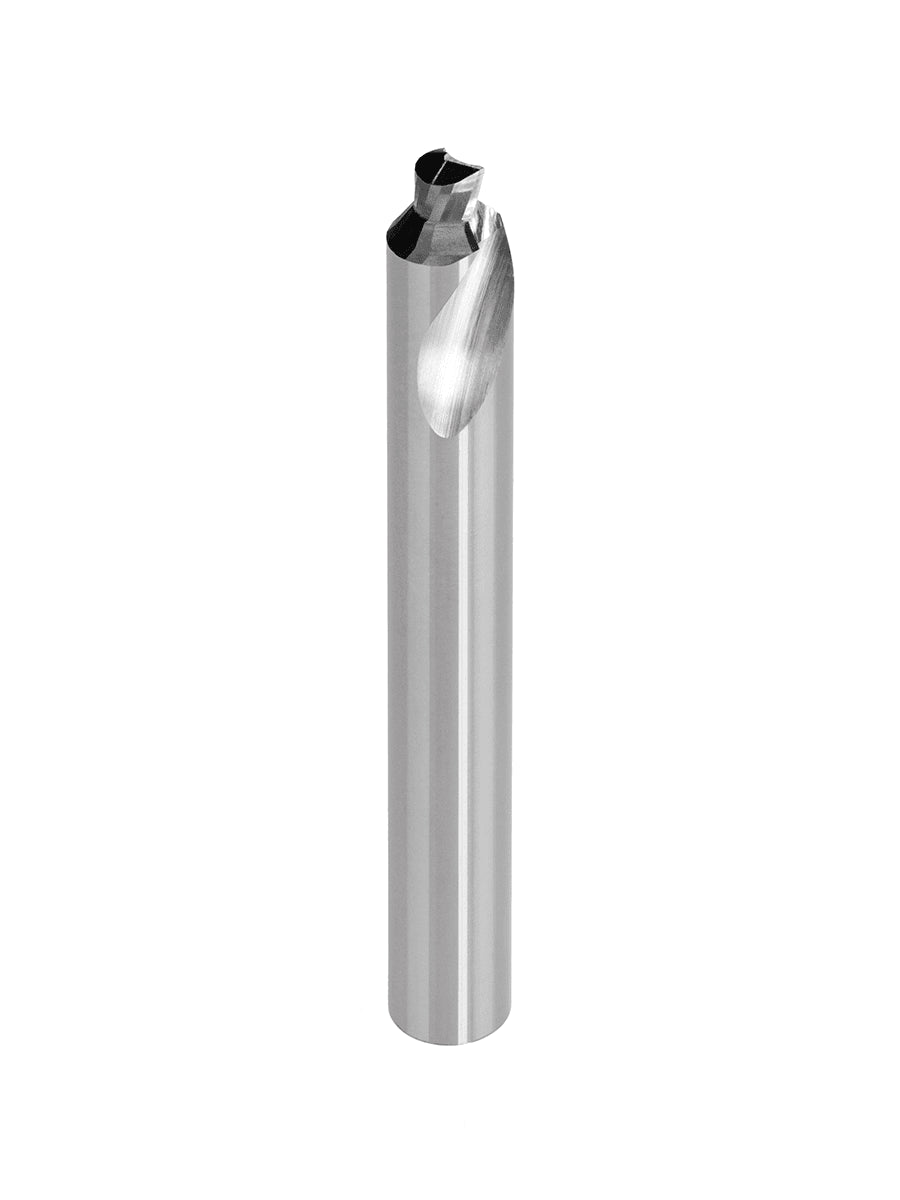

4202 - Fraise une dent avec chanfrein pour plastiques, PVC, bois

Family 4202

4202 - Single-tooth cutters with chamfer for plastics

Range specifically for plastics

Cuts out and chamfers the material as a single operation

CAUTION: Ensure that the material is flat!

From 48,30 €

Features

Cutting with chamfer
Milling
Slotting

Machined materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Thermosetting plastics
Thermoplastics

Possible materials

Non ferrous metals
Compact laminates
Aluminium faced composite panels

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 α Z Chamfer -
4202--0400A 4.0 8.0* 4.3 60.0 45° 1 2.0
4202--0400B 4.0 8.0* 6.3 60.0 45° 1 2.0
* Reinforced tail
