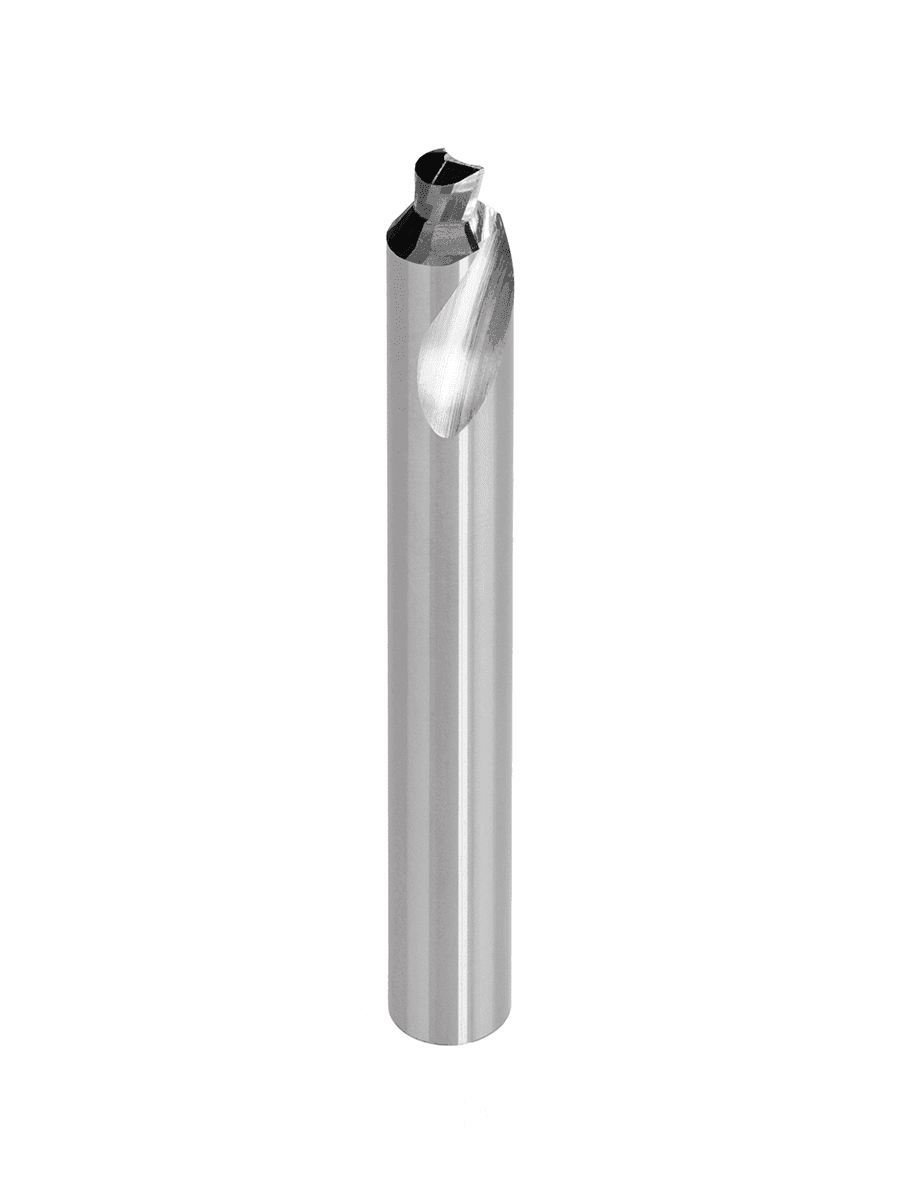

4203 - Fraise une dent avec chanfrein pour aluminium

Family 4203

Range specifically for non-ferrous metals (aluminium, brass, copper, etc.).

Also recommended for Dibond© type TAC and ACM

Cuts out and chamfers the material as a single operation.

CAUTION: ensure that the material is flat!
Uncoated cutter; lubrication is strongly recommended when used on aluminium.
Coating on demand.

AVAILABLE IN RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
The reference with ring has a "-B" at the end of the usual reference.
Example:
Standard part number without ring: 4203--0400A
Part no. with ring: 4203--0400A-B
Lead time: 48 hours

Use coolant

Features

Use coolant
Cutting with chamfer
Milling
Slotting

Machined materials

Non ferrous metals
Aluminium faced composite panels

Possible materials

Composite wood products
Hardwoods
Softwoods
Expanded pvc
Compact laminates
Thermosetting plastics
Thermoplastics

Technical drawing

Schéma technique
Réf. D1 D2 L2 L1 α Z Chamfer -
4203--0400A 4.0 6.0* 1.9 50.0 45° 1 1.0
4203--0400A-B 4.0 6.0* 1.9 50.0 - 1 -
4203--0400B 4.0 6.0* 2.3 50.0 45° 1 1.0
4203--0400B-B 4.0 6.0* 2.3 50.0 - 1 -
4203--0400C 4.0 6.0* 2.9 50.0 45° 1 1.0
4203--0400C-B 4.0 6.0* 2.9 50.0 - 1 -
4203--0400D 4.0 6.0* 3.3 50.0 45° 1 1.0
4203--0400D-B 4.0 6.0* 3.3 50.0 - 1 -
* Reinforced tail
