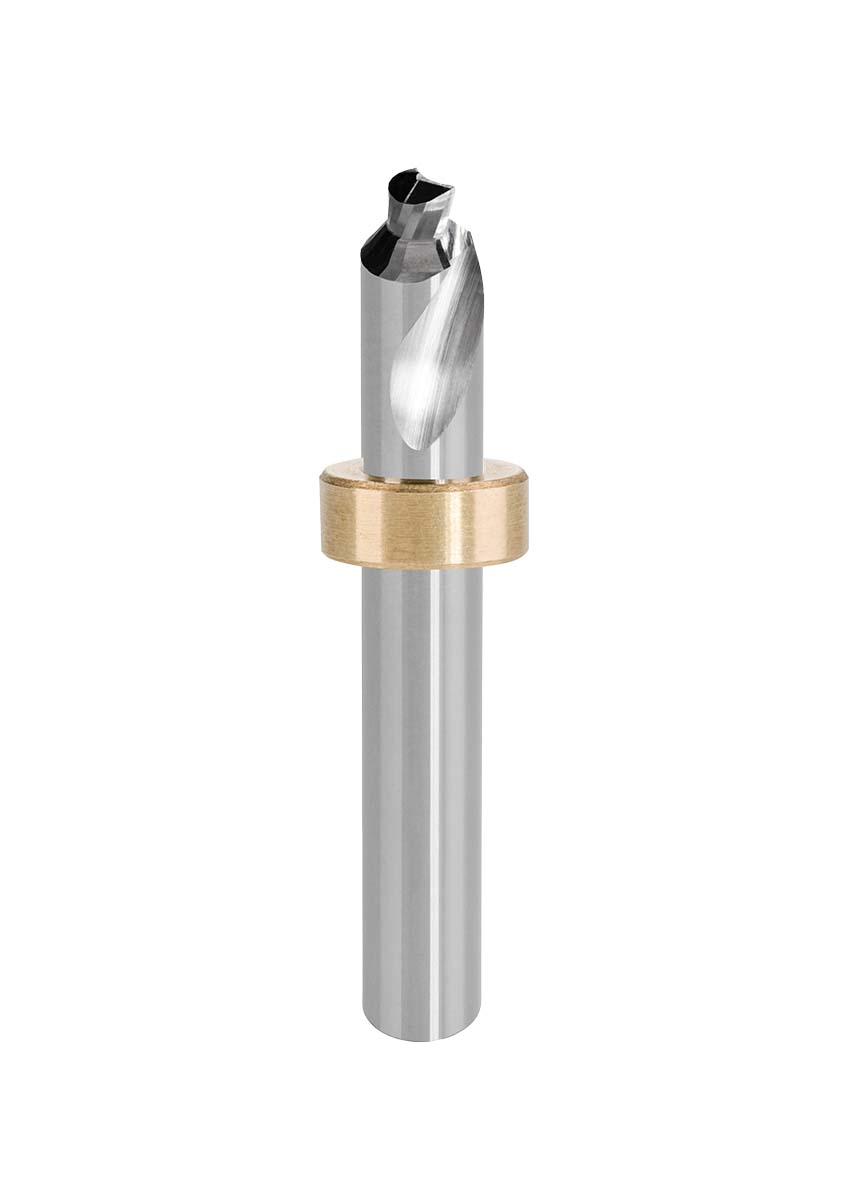

Family 4203 TYPE ZUND
RINGED VERSION FOR TOOLS WITH Ø6 SHANK.
Range specifically for non-ferrous metals (aluminium, brass, copper, etc.).
Also recommended for Dibond© type TAC and ACM
Cuts out and chamfers the material as a single operation.
CAUTION: ensure that the material is flat!
Uncoated cutter; lubrication is strongly recommended when used on aluminium.
Coating on demand.
Lead time: 48 hours
Solid carbideUpcut tool
Features
Machined materials
Possible materials
Technical drawing
| Réf. | D1 | D2 | L2 | L1 | Z | - |
|---|---|---|---|---|---|---|
| 4203--0400A-B | 4.0 | 6.0* | 1.9 | 50.0 | 1 | Log in or Sign In to order |
| 4203--0400B-B | 4.0 | 6.0* | 2.3 | 50.0 | 1 | Log in or Sign In to order |
| 4203--0400C-B | 4.0 | 6.0* | 2.9 | 50.0 | 1 | Log in or Sign In to order |
| 4203--0400D-B | 4.0 | 6.0* | 3.3 | 50.0 | 1 | Log in or Sign In to order |
* Reinforced tail
