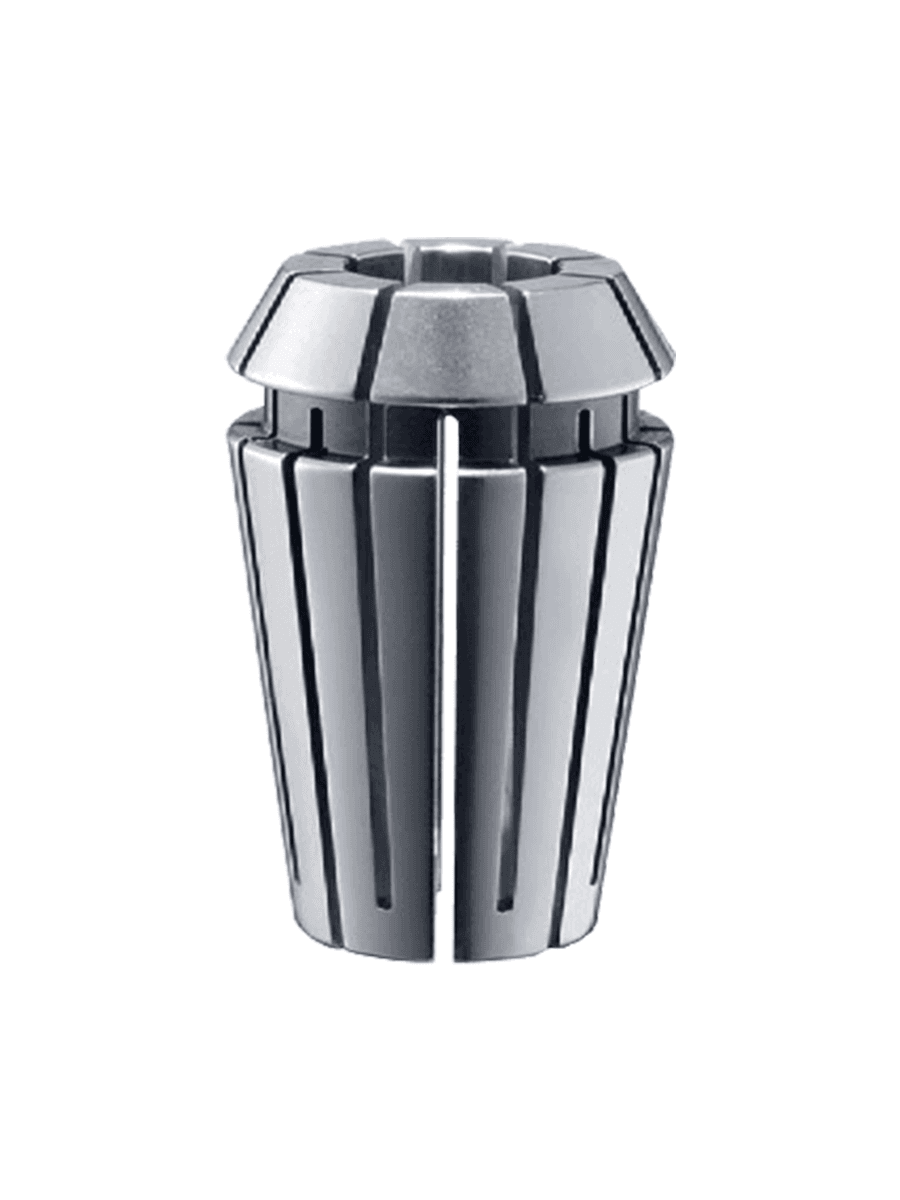

ER32 - PINCE DE SERRAGE ER32

Family ER32

ER spring collets
DIN 6499 - ISO 15488

Technical drawing

Schéma technique
Réf. D1 -
PINCE_ER32_10-9 10.0
PINCE_ER32_12-11 12.0
PINCE_ER32_14-13 14.0
PINCE_ER32_16-15 16.0
PINCE_ER32_3-2 3.0
PINCE_ER32_4-3 4.0
PINCE_ER32_5-4 5.0
PINCE_ER32_6-5 6.0
PINCE_ER32_8-7 8.0
