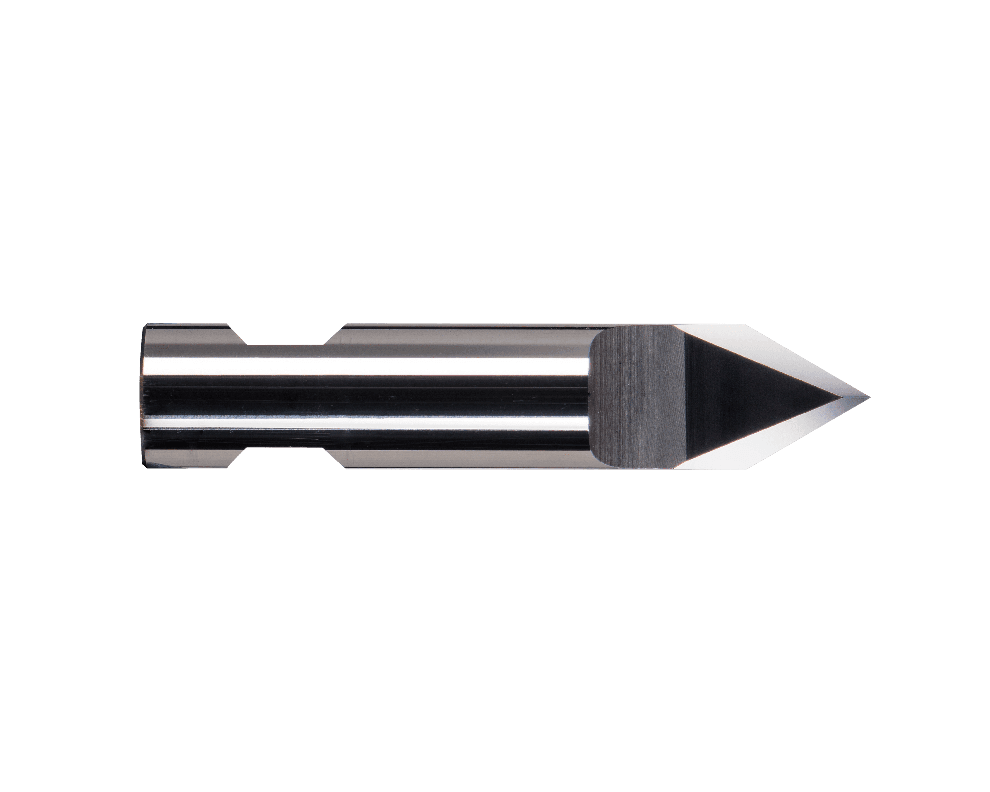

Asymmetric-edge blade, similar to DR-DIA-8160
Produces less overcut during cutting
Geometry optimized for high cuts
Suitable for various rigid materials up to 5–6 mm thick
Requires control of cutting direction

Pre-cut: 0.58xAP
Post-cut: 0.58xAP

Recommended materials :
• Adhesive vinyl
• Corrugated plastic
• Lenticular panel
• Flexible PVC
• Expanded PVC (Forex®, Sintra®)
• Magnetic sheet
• PC (Lexan®)
• Polypropylene (PP)
• PP honeycomb sheets
• Folding carton
• Corrugated board
• Solid board
• Flexographic plate (Cyrel®)
• Gasket material
Machine compatibility and Manufacturer references :
- ESKO : BLD-DR8260A, G42461996
