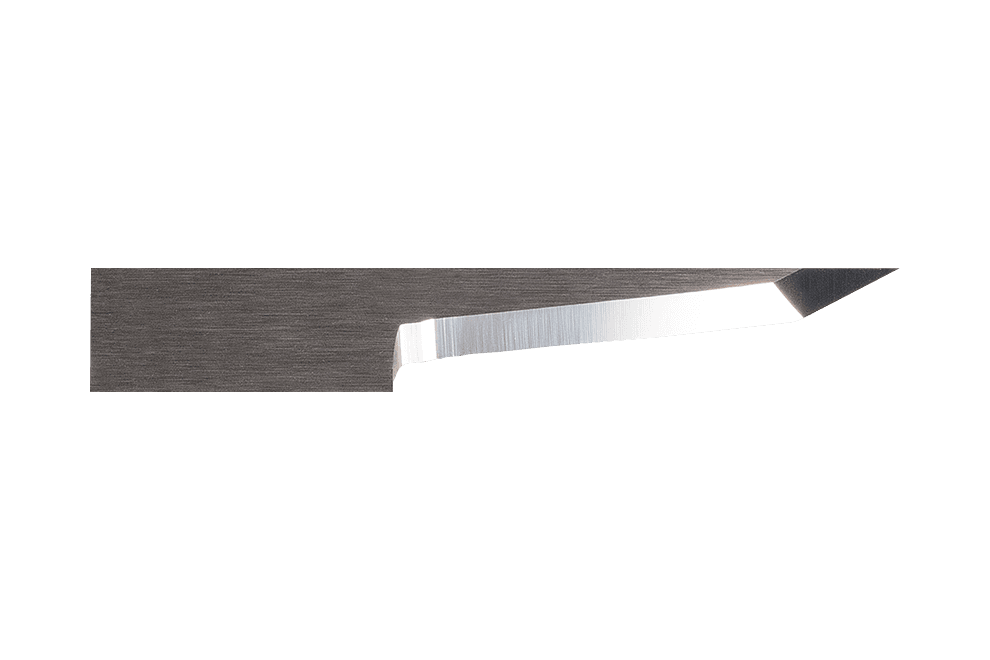

Very thin blade with minimal overcut
Specifically designed to cut small radii and intricate details in complex geometries.
Long lifespan on rubber materials.
Pre-cut: 1.2 + (0.11 x AP)
Recommended materials :
• Corrugated board; flute B, C, BC, EB, and E
• Folding carton; 100 - 1500 g
• Light foam
• Foam
• Ejection rubber
• Felt
Machine compatibility and Manufacturer references :
- ZÜND : Z20
- ESKO : BLD-SF420, G42421974
- SUMMA : 500-9812, 500-0812
- BLACKMAN & WHITE : BW20
- ARISTO : 910.313
| DIAGER Reference | Machine Accountant | Manufacturer Reference |
|---|---|---|
| Z-DIA-20 | Chargement… | Chargement… |
