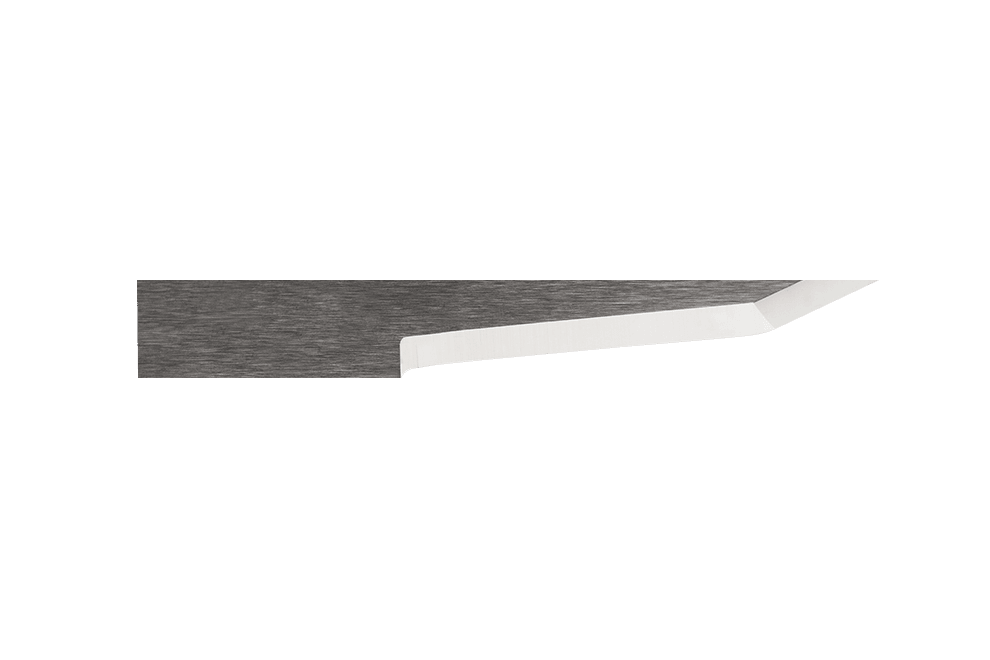

Blade with a narrow blade geometry and low offset very stable and robust, suitable for cutting small radii and complex details in intricate geometries
Similar to the Z-DIA-20, but more robust and with a larger offset.

Pre-cut: 1.2 +(0.2xAP)

Recommended materials :
• Corrugated cardboard; flutes B, C, BC, EB, and E
• Light foam
• Foam
• PP honeycomb sheets
• Folding carton; 100 - 1500 g
• Polyester fabric; coated textiles
• Rubber, ejection rubber
• Magnetic material
• Corrugated plastic
• Felt
Machine compatibility and Manufacturer references :
- ZÜND : Z22
- ESKO : BLD-SF422, G42458265
- SUMMA : 500-9810, 500-0810
- BLACKMAN & WHITE : BW22
- IECHO : E22
- ARISTO : 910.315
- MÉCANUMÉRIC : 100610380
