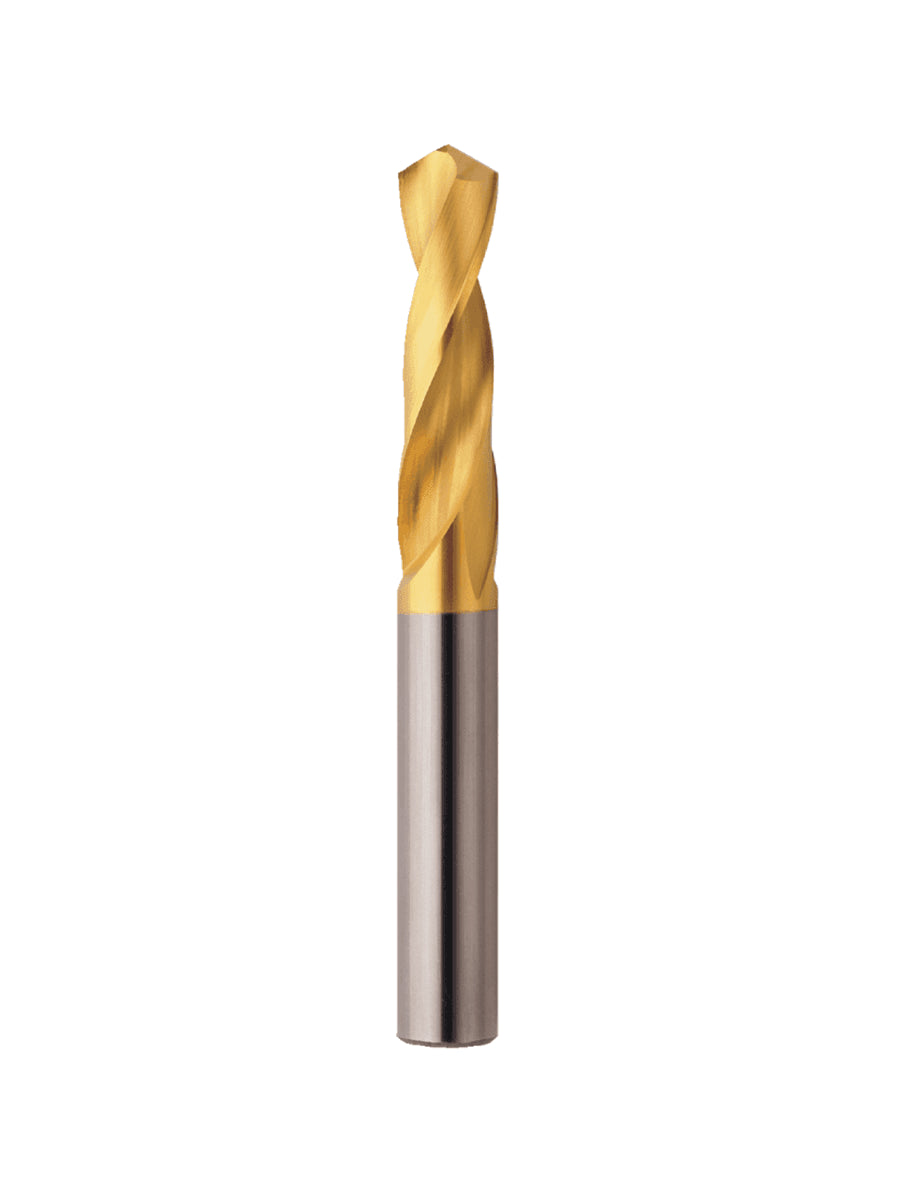

2415Tin - Foret 2 lèvres carbure monobloc revêtue TIN - Ø0,4 à Ø7,9

Famille 2415Tin

Coupe à droite
Hélice à droite 25°
Nombre de lèvres 2
Affûtage AF1
Carbure MK15
Attachement cylindrique

Usinage sous lubrification

Caractéristiques

Usinage sous lubrification
Perçage

Matières usinées

Aciers
Aciers inoxydables
Fontes

Matières possibles

Fontes

Schéma technique

Schéma technique
Réf. D1 D2 L2 L1 -
2415-T0040 0.4 0.4 5.0 30.0
2415-T0800 8.0 8.0 37.0 79.0
2415-T0050 0.5 0.5 5.5 30.0
2415-T0810 8.1 8.1 37.0 79.0
2415-T0060 0.6 0.6 5.5 30.0
2415-T0820 8.2 8.2 37.0 79.0
2415-T0070 0.7 0.7 6.5 30.0
2415-T0825 8.25 8.25 37.0 79.0
2415-T0075 0.75 0.75 6.5 30.0
2415-T0830 8.3 8.3 37.0 79.0
2415-T0080 0.8 0.8 8.0 30.0
2415-T0840 8.4 8.4 37.0 79.0
2415-T0090 0.9 0.9 8.0 30.0
2415-T0095 0.95 0.95 8.0 30.0
2415-T0100 1.0 1.0 8.0 30.0
2415-T0110 1.1 1.1 8.0 30.0
2415-T0120 1.2 1.2 8.0 30.0
2415-T0125 1.25 1.25 8.0 30.0
2415-T0130 1.3 1.3 8.0 30.0
2415-T0140 1.4 1.4 9.0 32.0
2415-T0145 1.45 1.45 9.0 32.0
2415-T0150 1.5 1.5 9.0 32.0
2415-T0160 1.6 1.6 10.0 34.0
2415-T0170 1.7 1.7 10.0 34.0
2415-T0175 1.75 1.75 11.0 36.0
2415-T0180 1.8 1.8 11.0 36.0
2415-T0190 1.9 1.9 11.0 36.0
2415-T0200 2.0 2.0 12.0 38.0
2415-T0205 2.05 2.05 12.0 38.0
2415-T0210 2.1 2.1 12.0 38.0
2415-T0220 2.2 2.2 13.0 40.0
2415-T0225 2.25 2.25 13.0 40.0
2415-T0230 2.3 2.3 13.0 40.0
2415-T0240 2.4 2.4 14.0 43.0
2415-T0250 2.5 2.5 14.0 43.0
2415-T0260 2.6 2.6 14.0 43.0
2415-T0270 2.7 2.7 16.0 46.0
2415-T0275 2.75 2.75 16.0 46.0
2415-T0280 2.8 2.8 16.0 46.0
2415-T0290 2.9 2.9 16.0 46.0
2415-T0300 3.0 3.0 16.0 46.0
2415-T0310 3.1 3.1 18.0 49.0
2415-T0320 3.2 3.2 18.0 49.0
2415-T0325 3.25 3.25 18.0 49.0
2415-T0330 3.3 3.3 18.0 49.0
2415-T0340 3.4 3.4 20.0 52.0
2415-T0350 3.5 3.5 20.0 52.0
2415-T0360 3.6 3.6 20.0 52.0
2415-T0370 3.7 3.7 20.0 52.0
2415-T0375 3.75 3.75 22.0 55.0
2415-T0380 3.8 3.8 22.0 55.0
2415-T0390 3.9 3.9 22.0 55.0
2415-T0400 4.0 4.0 22.0 55.0
2415-T0410 4.1 4.1 22.0 55.0
2415-T0420 4.2 4.2 22.0 55.0
2415-T0425 4.25 4.25 24.0 58.0
2415-T0430 4.3 4.3 24.0 58.0
2415-T0440 4.4 4.4 24.0 58.0
2415-T0450 4.5 4.5 24.0 58.0
2415-T0460 4.6 4.6 24.0 58.0
2415-T0470 4.7 4.7 24.0 58.0
2415-T0475 4.75 4.75 26.0 62.0
2415-T0480 4.8 4.8 26.0 62.0
2415-T0490 4.9 4.9 26.0 62.0
2415-T0500 5.0 5.0 26.0 62.0
2415-T0510 5.1 5.1 26.0 62.0
2415-T0520 5.2 5.2 26.0 62.0
2415-T0525 5.25 5.25 26.0 62.0
2415-T0530 5.3 5.3 26.0 62.0
2415-T0540 5.4 5.4 28.0 66.0
2415-T0550 5.5 5.5 28.0 66.0
2415-T0560 5.6 5.6 28.0 66.0
2415-T0570 5.7 5.7 28.0 66.0
2415-T0575 5.75 5.75 28.0 66.0
2415-T0580 5.8 5.8 28.0 66.0
2415-T0590 5.9 5.9 28.0 66.0
2415-T0600 6.0 6.0 28.0 66.0
2415-T0610 6.1 6.1 31.0 70.0
2415-T0620 6.2 6.2 31.0 70.0
2415-T0625 6.25 6.25 31.0 70.0
2415-T0630 6.3 6.3 31.0 70.0
2415-T0640 6.4 6.4 31.0 70.0
2415-T0650 6.5 6.5 31.0 70.0
2415-T0660 6.6 6.6 31.0 70.0
2415-T0670 6.7 6.7 31.0 70.0
2415-T0675 6.75 6.75 34.0 74.0
2415-T0680 6.8 6.8 34.0 74.0
2415-T0690 6.9 6.9 34.0 74.0
2415-T0700 7.0 7.0 34.0 74.0
2415-T0710 7.1 7.1 34.0 74.0
2415-T0720 7.2 7.2 34.0 74.0
2415-T0725 7.25 7.25 34.0 74.0
2415-T0730 7.3 7.3 34.0 74.0
2415-T0740 7.4 7.4 34.0 74.0
2415-T0750 7.5 7.5 34.0 74.0
2415-T0760 7.6 7.6 37.0 79.0
2415-T0770 7.7 7.7 37.0 79.0
2415-T0775 7.75 7.75 37.0 79.0
2415-T0780 7.8 7.8 37.0 79.0
2415-T0790 7.9 7.9 37.0 79.0
